Best Offers From Exerlon Power
EP Current transformer CT class1 class3 cl1 c3 for metering
In stock
Protected: EP Current Transformer CT Bracket (Amend Qty at Shopping Cart)
In stock
SALZER Metal Fan Guard for Video Fan 4inci 6inchi 8inci 10inci
In stock
MULTISPAN DC Multi-Function Meter 96×96 PM-11DC
Out of stock
| Dimensions | 5 × 9.6 × 9.6 cm |
|---|---|
| Brand |
Multispan |
| Accuracy Class |
Class 1.0 |
| Display |
3 Displays ,3 Lines, 4 Digit/Line 7-Segment LED Display, Red colour |
| Model |
PM-11DC |
| Product or Component Type |
Multi Function Meter |
| Size |
96mm*96mm |
| Measurement Parameters |
DC-Current (A) ,DC-Power (W) ,DC-Voltage (V) |
| Secondary Voltage |
0 – 200VDC |
| Secondary CT |
50 – 999ADC (75mV SHUNT) |
| Power Quality Analysis & Measurement |
Output Power: 0 – 199kW |
| Voltage Rating |
240VAC |
SCHNEIDER Mini Pragma Surface Enclosure Resi9 MP – 1 x 18 Modules (White, Plain Door) MIP12118
In stock
| Weight | 1.105 kg |
|---|---|
| Dimensions | 37.5 × 23 × 10 cm |
| Range of Product |
Resi9 MP |
| Brand |
Schneider |
| Product or Component Type |
Modular Enclosure |
| No. of Modules per Row |
18 |
| No. of Horizontal Row |
1 |
| Type of Door |
Plain |
| Mounting Mode |
Surface |
| Model |
MIP12118 |
| Current Rating |
63A |
| Cable Entry |
1 Bare Flange ,1 Trunking Flange |
| Function Available |
Terminal Block: Earth/Neutral |
| No. of Terminal Blocks |
1 earth (screwed) with 16 outgoers ,1 neutral (screwed) with 16 outgoers |
| Distribution Block Outgoers |
2 x 16 mm² for earth ,2 x 16 mm² for neutral ,6 x 6 mm² for earth ,6 x 6 mm² for neutral ,8 x 10 mm² for earth ,8 x 10 mm² for neutral |
| Material |
Back part: technoplastic ,Door: technoplastic ,Front face: technoplastic |
| Colour |
Door: white (RAL 9003) ,Front face: white (RAL 9003) |
CKC CIKACHI (1.25mm – 5mm) Non-Insulated Spade Terminals (100psc/pack)
In stock

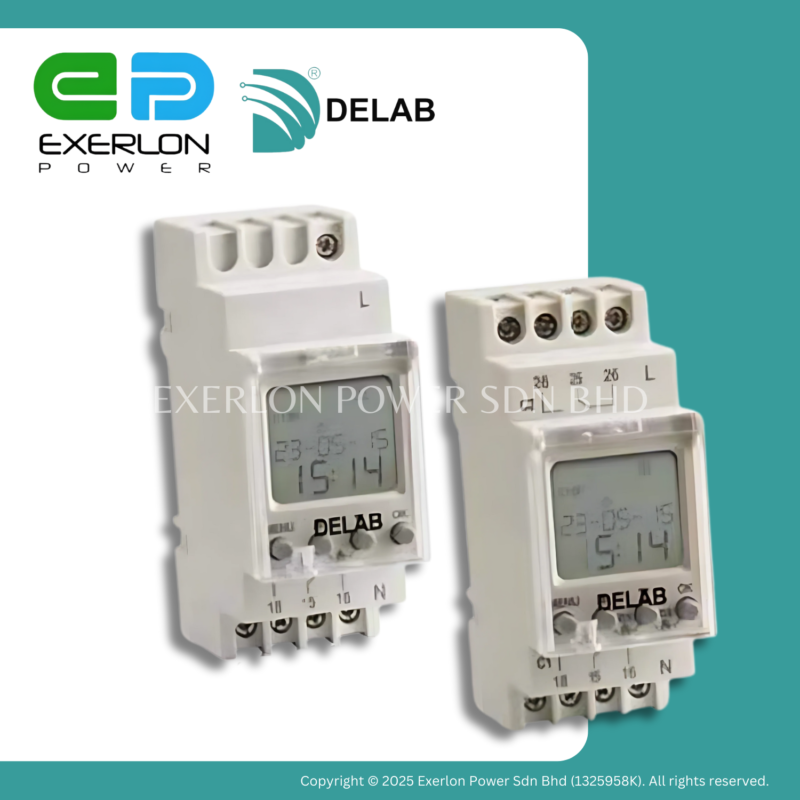

DELAB Digital Time Switch DTS-100 DTS-101DTS-102
In stock

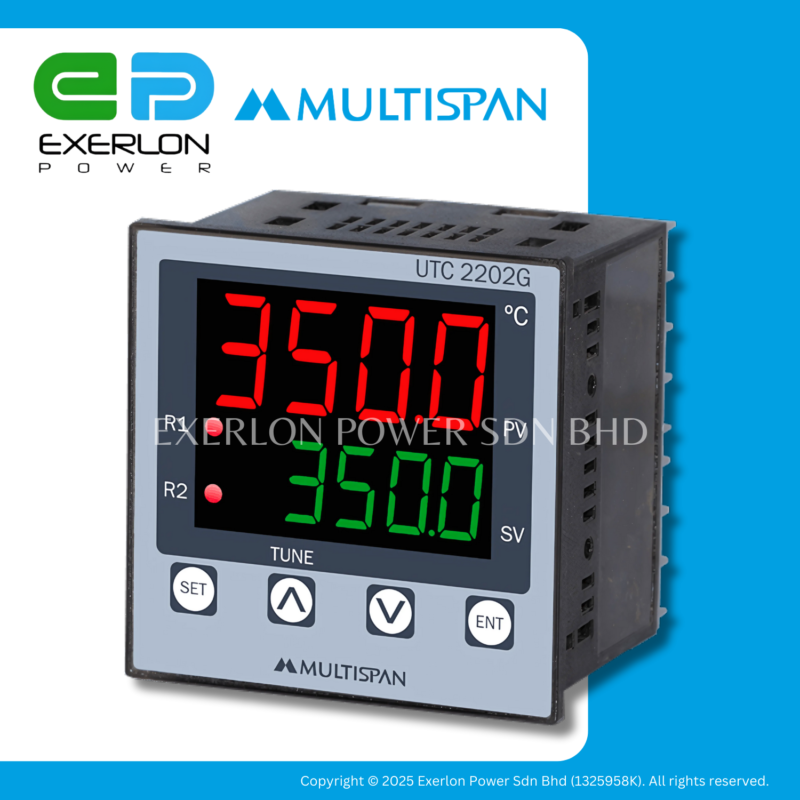

MULTISPAN Digital PID Temperature Controller (Dual PID Output) 72×72, UTC-2202G
In stock
| Dimensions | 8.5 × 7.2 × 7.2 cm |
|---|---|
| Brand |
Multispan |
| Product or Component Type |
PID Temperature Controller |
| Model |
UTC-2202G |
| Size |
72mm*72mm |
| Input |
RTD: PT-100 3-Wire (Configurable) ,Thermocouple: J/K (Configurable), R/S (Optional) |
| Range |
K: 0 to 1200°C, K.1: 0.0 to 500.0°C ,R: 0 to 1750°C, S: 0 to 1750°C (Optional) ,RTD: PT-100 -> -50 to 400°C, PT.1 -> -50.0 to 400°C ,Thermocouple: J -> 0 to 600°C, J.1: 0.0 to 400.0°C |
| Output |
2 Relay, 1 C/O, 5A, 230VAC ,SSR 12VDC Parallel (2 Set Point) |
| Function Available |
PID / TP / ON-OFF (Configurable) |
| Measurement Parameters |
High / Low / Inband / Outband / Absolute Low / Absolute Outband Alarm (Configurable) + Soak Time |
| Voltage Rating |
100 – 250VAC, 50/60Hz |
| Display |
2 Displays ,Lower: 4 Digit, 7 seg 0.4", Green LED Display ,Upper: 4 Digit, 7 seg 0.56", RED LED Display |

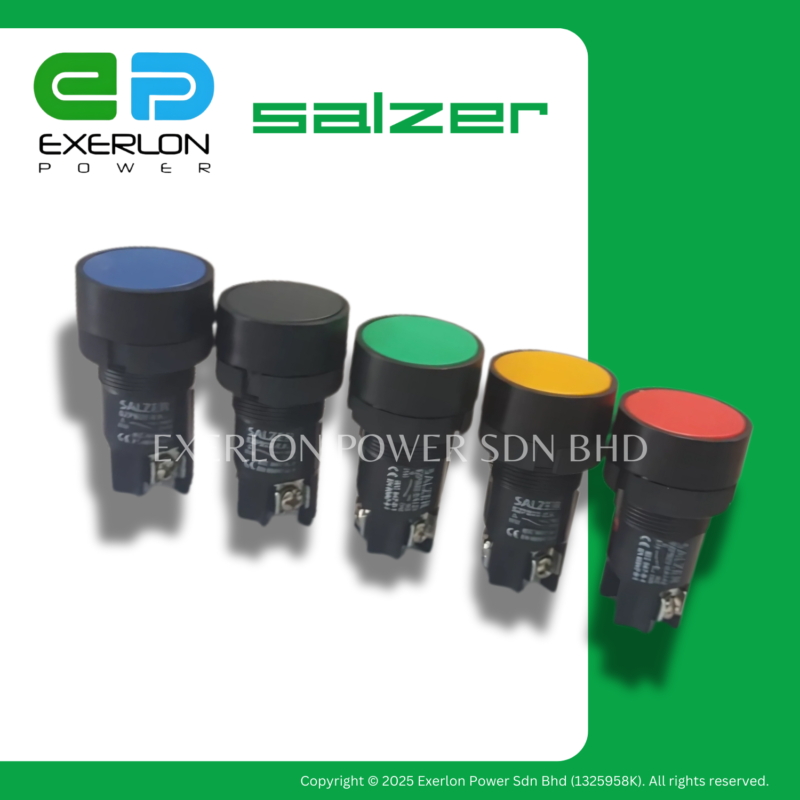

SALZER 22MM SZPB22 XB2 Series Control Units Push Button
In stock
SCHNEIDER Contactor TeSys D, 3NO, 3 Poles, LC1D115 / LC1D150
In stock
| Weight | 2.495 kg |
|---|---|
| Dimensions | 21.5 × 17.5 × 19.5 cm |
| Model |
LC1D115 (115A) ,LC1D150 (150A) |
| Voltage Rating |
F7 (110VAC) ,M7 (220VAC) ,N7 (415VAC) ,U7 (240VAC) |
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Product or Component Type |
Contactor |
| Device Short Name |
LC1D |
| Function Available |
Motor Control ,Resistive Load |
| Utilisation Category |
AC-1 ,AC-3 ,AC-3e ,AC-4 |
| Poles |
3 Poles |
| Product Compatibility |
LC1D |
| Breaking Capacity |
1100 A at 440 V for power circuit conforming to IEC 60947 |
| Mechanical Durability |
8 Mcycles |
| Aux. Contact Composition |
1 NO + 1 NC |
| Mounting Mode |
DIN Rail ,Plate |
