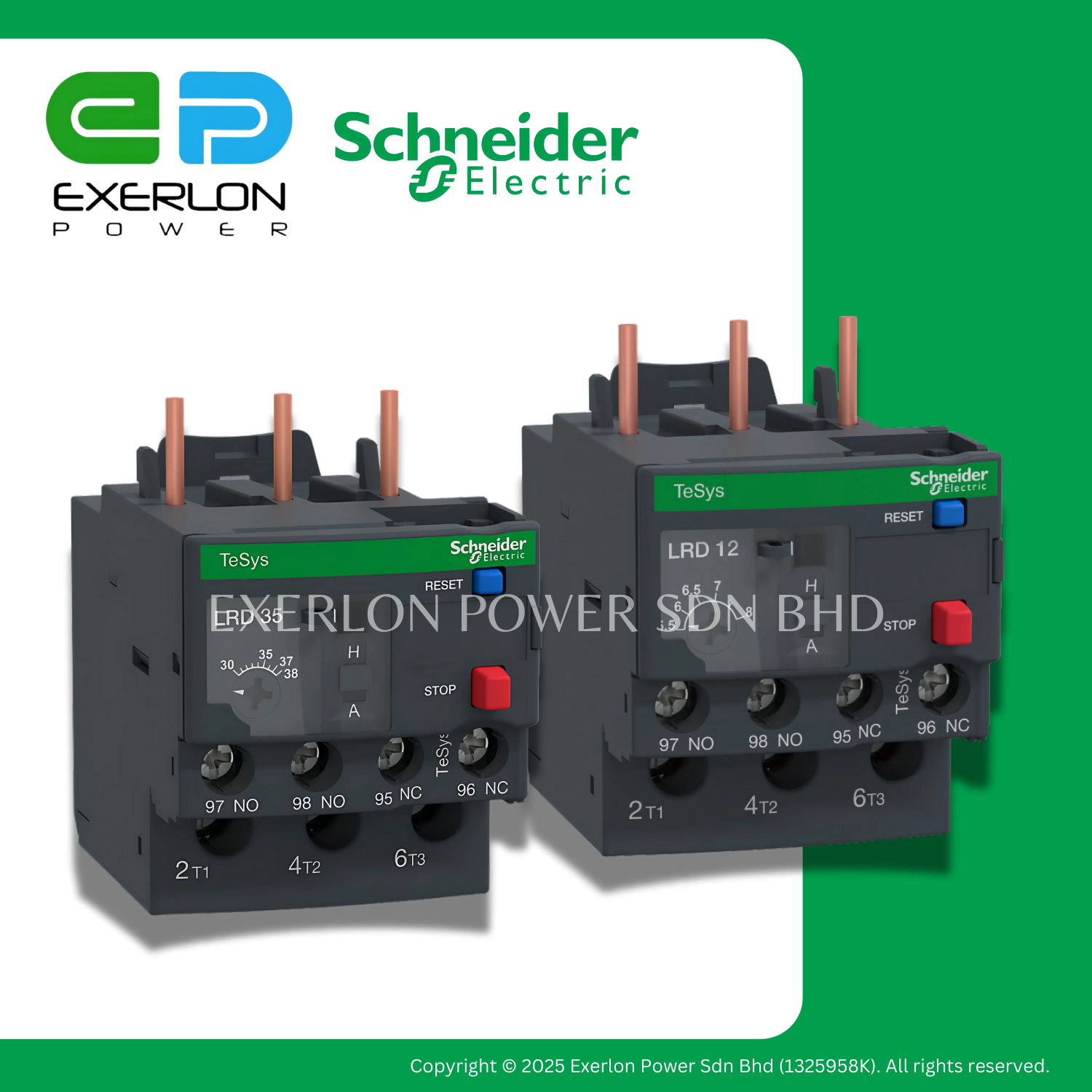

SCHNEIDER TOR Thermal Overload Relay LRD05/06/07/08/10/12/14/16/21/22/32/35 (0.6-38A)

SKU: SCHNEIDER LRD●●

Schneider Electric Differential Thermal Overload Relays – TeSys LRD Range
* COMPATIBLE FOR LC1D09-LC1D38 CONTACTOR

Model Available: LRD05/06/07/08/10/12/14/16/21/22/32/35

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

RM79.30 – RM163.30

Add to compare
Add to wishlist
0 People watching this product now!
  • Warranty included

More details

  • User menu available for download

More details

Payment Methods:

  • Pick up from any Exerlon Power HQ branch

To pick up today

Free

  • Pick up from any Exerlon Power Penang branch

To pick up today

Free

  • Pick up from any Exerlon Power Johor branch

To pick up today

Free

  • Pick up from any Exerlon Power Ipoh branch

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Charges will be applied

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty included

More details

  • User menu available for download

More details

TeSys LRD thermal overload relay, 1-38A/690V, thermal setting range 0.63-1A/1-1.6A/1.6-2.5A/2.5-4A/4-6A/5.5-8A/7-10A/9-13A/12-18A/16-24A/23-32A/30-38A, tripping class 10A, for protection of 3-phase motors 0.25-18.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “SCHNEIDER TOR Thermal Overload Relay LRD05/06/07/08/10/12/14/16/21/22/32/35 (0.6-38A)”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

You have to be logged in to be able to add photos to your review.

📥Product Datasheet (LRD05)
📥Product Datasheet (LRD06)
📥Product Datasheet (LRD07)
📥Product Datasheet (LRD08)
📥Product Datasheet (LRD10)
📥Product Datasheet (LRD12)
📥Product Datasheet (LRD14)
📥Product Datasheet (LRD16)
📥Product Datasheet (LRD21)
📥Product Datasheet (LRD22)
📥Product Datasheet (LRD32)
📥Product Datasheet (LRD35)

📑 User Guide
📑 Instruction Sheet
📑 Catalogue
📑 Environmental Disclosure

Specification

Overview

Weight N/A
Dimensions N/A
Current Rating

LRD05 (0.63-1A)

,

LRD06 (1-1.6A)

,

LRD07 (1.6-2.5A)

,

LRD08 (2.5-4A)

,

LRD10 (4-6A)

,

LRD12 (5.5-8A)

,

LRD14 (7-10A)

,

LRD16 (9-13A)

,

LRD21 (12-18A)

,

LRD22 (16-24A)

,

LRD32 (23-32A)

,

LRD35 (30-38A)
Function Available

Motor Protection
Aux. Contact Composition

1 NO + 1 NC

General

Brand

Schneider
Range of Product

TeSys Deca
Product or Component Type

Differential Thermal Overload Relay
Device Short Name

LRD

Frequently Bought Together

Add to compare
Quick view
Add to wishlist

SCHNEIDER TOR Thermal Overload Relay LRD05/06/07/08/10/12/14/16/21/22/32/35 (0.6-38A)

,

In stock

RM79.30 – RM163.30
SKU: SCHNEIDER LRD●●
Weight N/A
Dimensions N/A
Current Rating

LRD05 (0.63-1A)

,

LRD06 (1-1.6A)

,

LRD07 (1.6-2.5A)

,

LRD08 (2.5-4A)

,

LRD10 (4-6A)

,

LRD12 (5.5-8A)

,

LRD14 (7-10A)

,

LRD16 (9-13A)

,

LRD21 (12-18A)

,

LRD22 (16-24A)

,

LRD32 (23-32A)

,

LRD35 (30-38A)
Brand

Schneider
Range of Product

TeSys Deca
Product or Component Type

Differential Thermal Overload Relay
Device Short Name

LRD
Function Available

Motor Protection
Product Compatibility

LC1D09

,

LC1D12

,

LC1D18

,

LC1D25

,

LC1D32

,

LC1D38
Thermal Overload Class

Class 10A conforming to IEC 60947-4-1
Mounting Mode

Plate, with specific accessories

,

Rail, with specific accessories

,

Under contactor
Aux. Contact Composition

1 NO + 1 NC
