Warranty included
MULTISPAN DC Multi-Function Meter 96×96 MFM-14DC-M1
MFM-14DC-M1 (96X96)
Model: MULTISPAN MFM-14DC-M1
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM350.00
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
MFM-14DC-M1 (96X96)
VOLTAGE: 0-1000VDC
CURRENT: -999 – 9999ADC
WATT: -999 – 9999kW

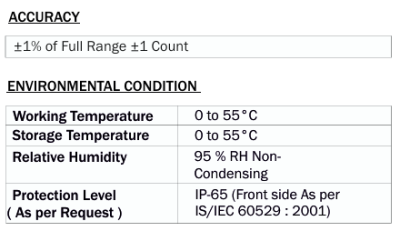

ACCURACY: CLASS 1.0
AUX SUPPLY: 100-270VAC/DC
Model: MULTISPAN MFM-14DC-M1
You must be logged in to post a review.
Specification
Overview
| Weight | 0.1 kg |
|---|---|
| Dimensions | 5 × 9.6 × 9.6 cm |
| Accuracy Class |
Class 1.0 |
| Display |
kWh Display: 1 Line, 6 Digits 7-Segment 0.40" LED Display, Red colour ,VAW Display: 3 Lines, 4 Digits 7 Segment 0.40" LED Display, Red Colour |
| Size |
96mm*96mm |
| Measurement Parameters |
DC-Current (A) ,DC-Power (W) ,DC-Voltage (V) |
| Voltage Rating |
Supply Voltage: 100 – 270 VAC/DC |
General
| Brand |
Multispan |
|---|---|
| Model |
MFM-14DC-M1 |
