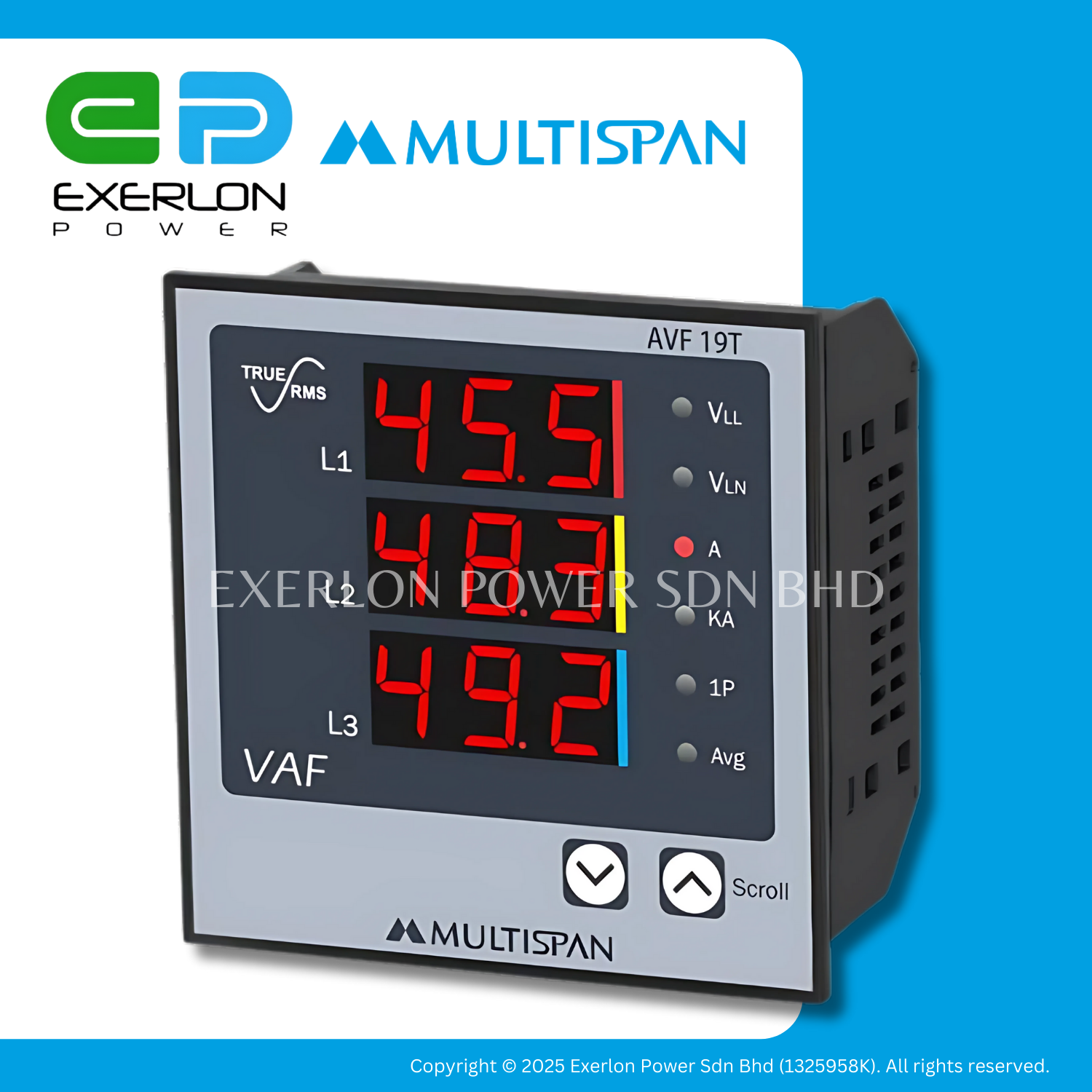

MULTISPAN Digital AVF Meter with Frequency VAF Meter 96×96, AVF19T
AVF – 19T (96X96)
Model: MULTISPAN AVF-19T (https://www.multispanindia.com/varient.php/avf-meters)
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM144.00
15 in stock
15 in stock
-
Warranty included
-
User menu available for download
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
AVF Meters
Product: AVF-19T
- 3Ø-3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- CT Primary Selectable Upto 9999A
- CT Secondary Selectable 5A or 1A
- PT Primary Selectable 100V to 520KV
- PT Secondary Selectable 50V to 520V AC
- 50-520V AC (L-L), 30-300V AC (L-N)
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
Model: MULTISPAN AVF-19T (https://www.multispanindia.com/varient.php/avf-meters)
Specification
Overview
| Dimensions | 4.3 × 9.6 × 9.6 cm |
|---|---|
| Display |
3 Displays ,3-Digit, 3-Line, 7-Seg, 0.59” RED LED |
| Size |
96mm*96mm |
| Voltage Rating |
100 to 270V AC/DC, 50/60Hz |
| Measurement Parameters |
All Phase Amp, Avg Amp ,Load Hour (Up to 9999 Hr 59 min) ,RPM, Phase Sequence Indication ,System Frequency ,VLL, VLN, Avg. |
| Accuracy Class |
Class 0.5 (Standard) |
General
| Brand |
Multispan |
|---|---|
| Product or Component Type |
AVF Meter |
| Model |
AVF-19T |
