Warranty included
New
MULTISPAN DPM Digital Power Meter with KWH Display AVH-14-M1 (RS-485 Version)
AVH-14-M1 with RS485 (96 X 96mm)
Model: MULTISPAN AVH-14-M1
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM396.00
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-

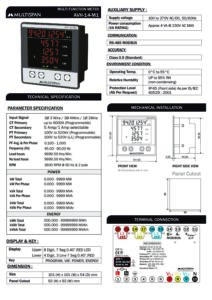

User menu available for download
AVH-14-M1 with RS485 (96 X 96mm)
INPUT: 3P3P/3P4W/1P2W
Primary Voltage: 100V-520KV
Secondary Voltage: 100V-520V
CURRENT :5A-6000A /1A OR 5A
ACCURACY: A, V CL0.5, ENERGY: CL1
AUX SUPPLY :100-270VAC, 50/60Hz
Model: MULTISPAN AVH-14-M1
You must be logged in to post a review.
Specification
Overview
| Dimensions | 5.4 × 10.1 × 10.1 cm |
|---|---|
| Display |
4 Displays ,Lower: 4 Digit, 3 Line 7 Seg 0.40”,RED ,Upper: 8 Digit, 7 Seg 0.40”,RED LED |
| Measurement Parameters |
Energy: Total kWh, Total kVAh, Total kVARh ,Power: Total kW, kW per Phase, Total kVA, kVA per Phase, Total kVAR, kVAR per Phase |
| Accuracy Class |
Class 0.5 (Standard) |
| Voltage Rating |
100 to 270V AC/DC, 50/60Hz |
| Size |
Front: 101*101 mm ,Panel: 92*92 mm |
General
| Brand |
Multispan |
|---|---|
| Product or Component Type |
Multi Function Meter |
| Model |
AVH-14-M1 |
Customer Reviews
Reviews
Clear filtersThere are no reviews yet.
You must be logged in to post a review.
