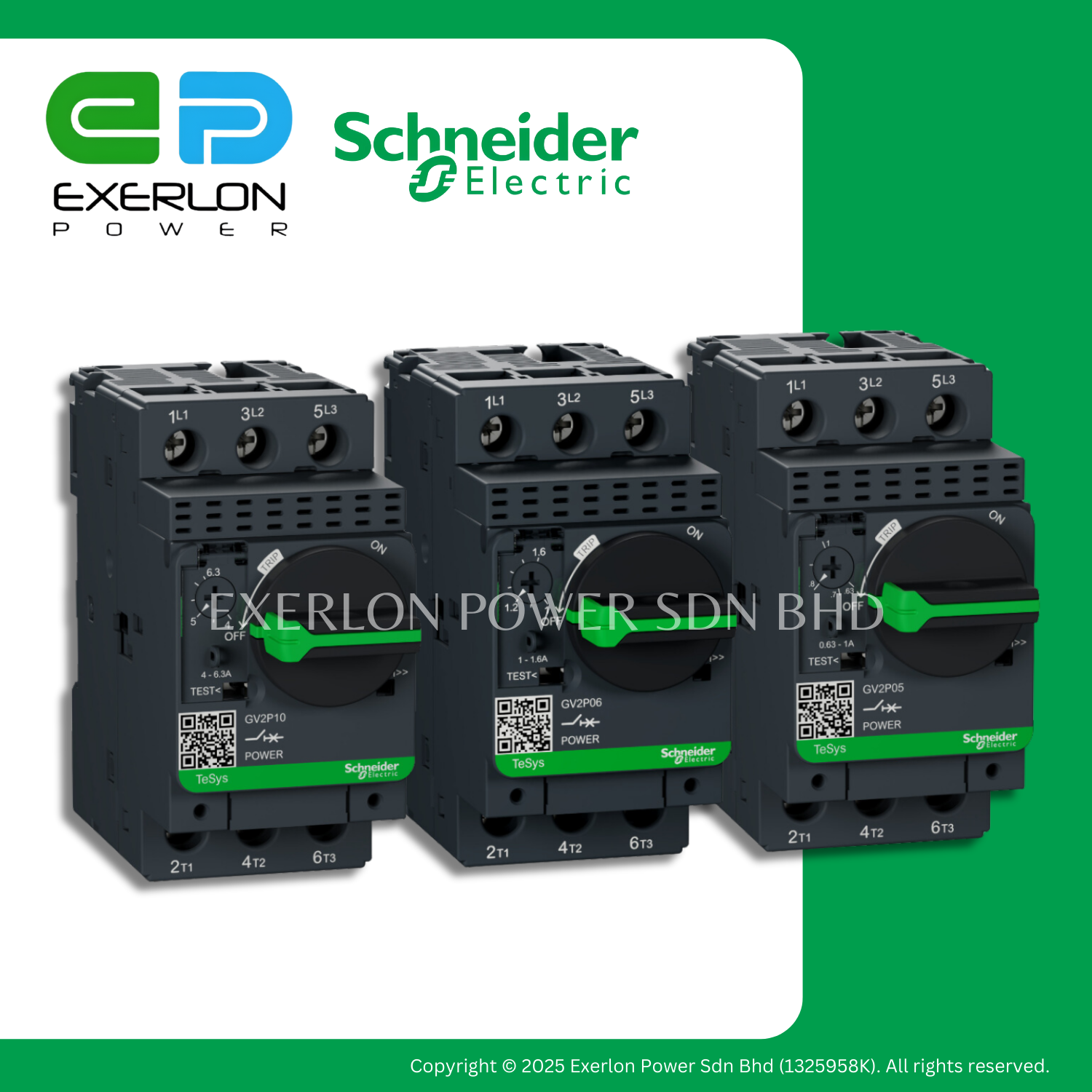

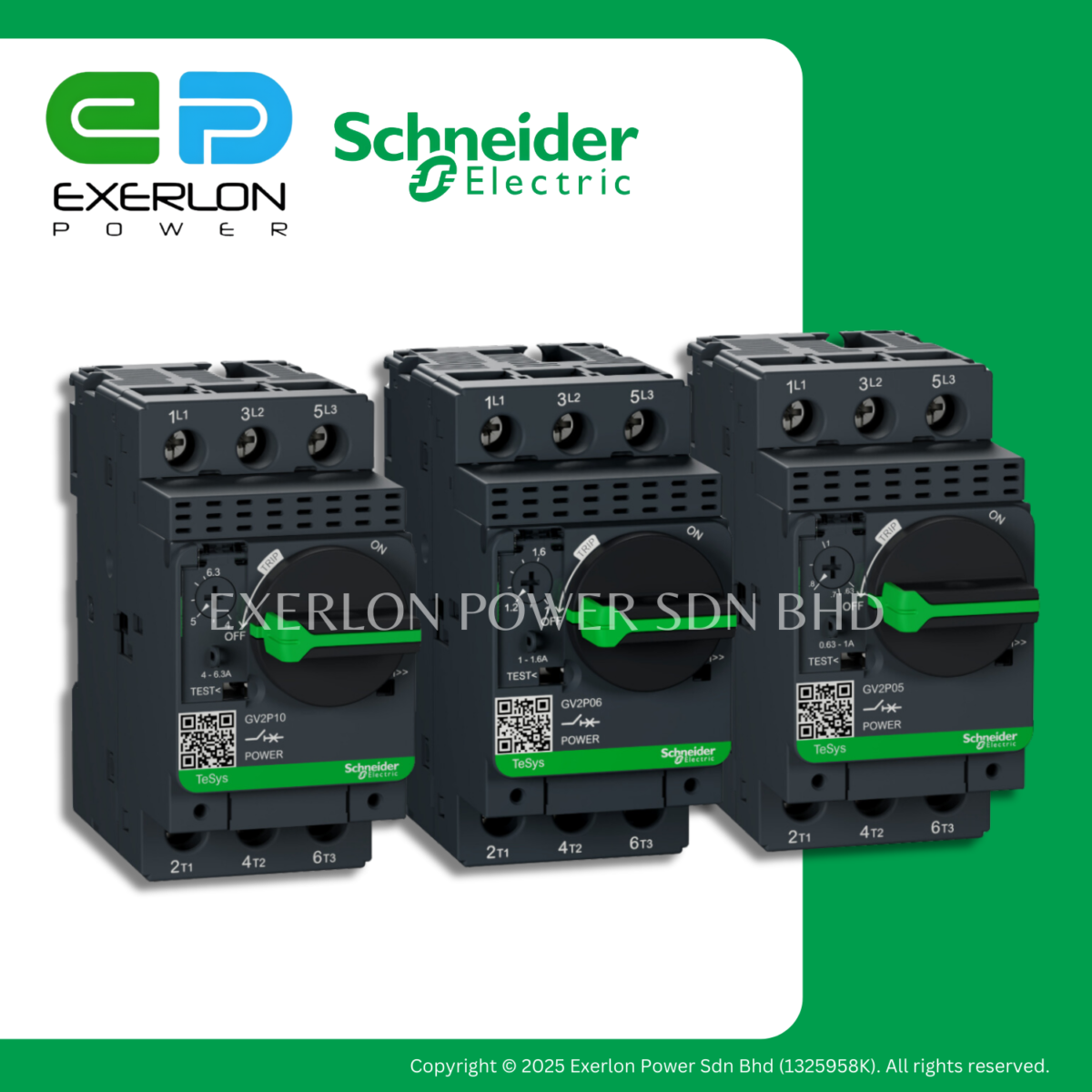

SCHNEIDER GV2 Motor Circuit Breaker, Thermal Magnetic, Screw Clamp Terminals, GV2P05 – GV2P32
Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4) & Easier to install and operate with multi-standard screws
Model Available: GV2P05 – GV2P32
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM171.60 – RM346.80
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
TeSys GV Power wiring system for motor starter assemblies
This system is convenient when time and space savings are required.
The motor starter can be composed of:
* GV2 circuit breaker + LC1D contactor
* Control : Rotary handle
The most commonly used circuit breaker. with a choice of about 100 auxiliaries and accessories. GV2 and TeSys D or K contactors can be easily assembled as a single block with one accessory.
The high GV2 electrical endurance (up to 100 000 operating cycles) makes it very suitable for direct manual motor control, especially GV2ME (1) (thermal-magnetic c.b., Ith up to 32 A).
Enclosure mounting is well adapted to GV2L and GV2P, with their possible extended rotary handle and visible trip indication.
Model Available:
– GV2P05 (0.63 – 1A)
– GV2P06 (1 – 1.6A)
– GV2P07 (1.6 – 2.5A)
– GV2P08 (2.5 – 4A)
– GV2P10 (4 – 6.3A)
– GV2P14 (6 – 10A)
– GV2P16 (9 – 14A)
– GV2P20 (13 – 18A)
– GV2P21 (17 – 23A)
– GV2P22 (20 – 25A)
– GV2P32 (24 – 32A)
You must be logged in to post a review.
📥Product Datasheet (GV2P05) 📥Product Datasheet (GV2P16)
📥Product Datasheet (GV2P06) 📥Product Datasheet (GV2P20)
📥Product Datasheet (GV2P07) 📥Product Datasheet (GV2P21)
📥Product Datasheet (GV2P08) 📥Product Datasheet (GV2P22)
📥Product Datasheet (GV2P10) 📥Product Datasheet (GV2P32)
📥Product Datasheet (GV2P14)
📑 User Guide
📑 Instruction Sheet
📑 Catalogue
📑 Environmental Disclosure
Specification
Overview
| Weight | 0.329 kg |
|---|---|
| Dimensions | 10 × 9.3 × 4.8 cm |
| Function Available |
Motor Protection |
| Utilisation Category |
AC-3 conforming to IEC 60947-4-1 ,AC-3e conforming to IEC 60947-4-1 ,Category A conforming to IEC 60947-2 |
| Breaking Capacity |
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 ,100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
General
| Model |
GV2P05 (0.63-1A) ,GV2P06 (1-1.6A) ,GV2P07 (1.6-2.5A) ,GV2P08 (2.5-4A) ,GV2P10 (4-6.3A) ,GV2P14 (6-10A) ,GV2P16 (9-14A) ,GV2P20 (13-18A) ,GV2P21 (17-23A) ,GV2P22 (20-25A) ,GV2P32 (24-32A) |
|---|---|
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Product or Component Type |
Motor Circuit Breaker |
| Device Short Name |
GV2P |
Frequently Bought Together
SCHNEIDER GV2 Motor Circuit Breaker, Thermal Magnetic, Screw Clamp Terminals, GV2P05 – GV2P32
In stock
RM171.60 – RM346.80
SKU:
SCHNEIDER GV2P●●
| Weight | 0.329 kg |
|---|---|
| Dimensions | 10 × 9.3 × 4.8 cm |
| Model |
GV2P05 (0.63-1A) ,GV2P06 (1-1.6A) ,GV2P07 (1.6-2.5A) ,GV2P08 (2.5-4A) ,GV2P10 (4-6.3A) ,GV2P14 (6-10A) ,GV2P16 (9-14A) ,GV2P20 (13-18A) ,GV2P21 (17-23A) ,GV2P22 (20-25A) ,GV2P32 (24-32A) |
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Product or Component Type |
Motor Circuit Breaker |
| Device Short Name |
GV2P |
| Function Available |
Motor Protection |
| Poles |
3 Poles |
| Utilisation Category |
AC-3 conforming to IEC 60947-4-1 ,AC-3e conforming to IEC 60947-4-1 ,Category A conforming to IEC 60947-2 |
| Breaking Capacity |
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 ,100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical Durability |
100000 cycles |
| Electrical Durability |
100000 cycles for AC-3 at 415 V In ,100000 cycles for AC-3e at 415 V In |
| Mounting Mode |
35 mm symmetrical DIN rail: clipped ,Panel: screwed (with 2 x M4 screws) |
| Colour |
Dark Grey |
SCHNEIDER Accessories for GV2 Motor Breaker GVAE11 GV4AE11 GVAN11 GVAN20 GVAD1010
In stock
RM30.80 – RM42.50
SKU:
SCHNEIDER GV●●●●
SCHNEIDER GV2 Motor Circuit Breaker, Thermal Magnetic, Screw Clamp Terminals, GV2P05 – GV2P32
In stock
RM171.60 – RM346.80
SKU:
SCHNEIDER GV2P●●
| Weight | 0.329 kg |
|---|---|
| Dimensions | 10 × 9.3 × 4.8 cm |
| Model |
GV2P05 (0.63-1A) ,GV2P06 (1-1.6A) ,GV2P07 (1.6-2.5A) ,GV2P08 (2.5-4A) ,GV2P10 (4-6.3A) ,GV2P14 (6-10A) ,GV2P16 (9-14A) ,GV2P20 (13-18A) ,GV2P21 (17-23A) ,GV2P22 (20-25A) ,GV2P32 (24-32A) |
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Product or Component Type |
Motor Circuit Breaker |
| Device Short Name |
GV2P |
| Function Available |
Motor Protection |
| Poles |
3 Poles |
| Utilisation Category |
AC-3 conforming to IEC 60947-4-1 ,AC-3e conforming to IEC 60947-4-1 ,Category A conforming to IEC 60947-2 |
| Breaking Capacity |
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 ,100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical Durability |
100000 cycles |
| Electrical Durability |
100000 cycles for AC-3 at 415 V In ,100000 cycles for AC-3e at 415 V In |
| Mounting Mode |
35 mm symmetrical DIN rail: clipped ,Panel: screwed (with 2 x M4 screws) |
| Colour |
Dark Grey |
SCHNEIDER Accessories for GV2 Motor Breaker GV1G09 GV2G345 GV2G445
In stock
RM30.80 – RM74.10
SKU:
SCHNEIDER GV1G●●/GV2G●●●
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model |
GV1G09 ,GV2G345 ,GV2G445 |
| Brand |
Schneider |
| Range of Product |
Linergy |
| Device Short Name |
GV1G ,GV2G |
| Product or Component Type |
Comb Busbar (GV2G345 & GV2G445) ,Terminal Block (GV1G09) |
| Poles |
3 Poles |
| Function Available |
Connection Accessories |
| Mounting Mode |
On Terminal (GV2G345 & GV2G445) ,Top (GV1G09) |
Customer Reviews
Reviews
Clear filtersThere are no reviews yet.
You must be logged in to post a review.
Related Products

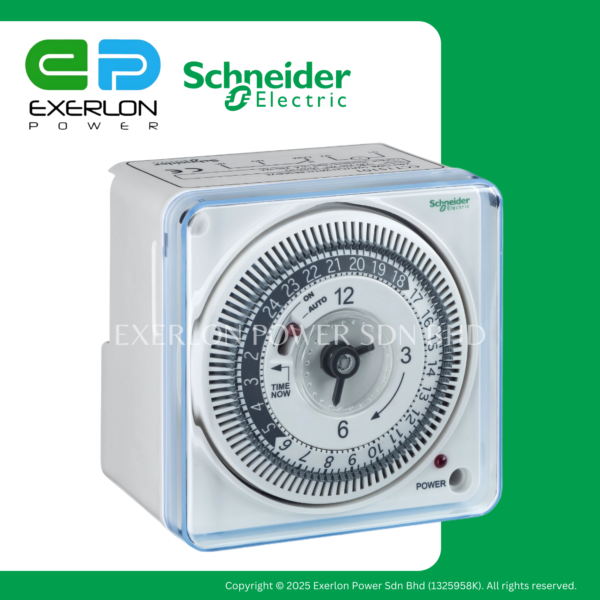

SCHNEIDER 24H Time Switch With Reserve Surface/DIN Mount CCT15101 (Equivalent Hager EH711)
