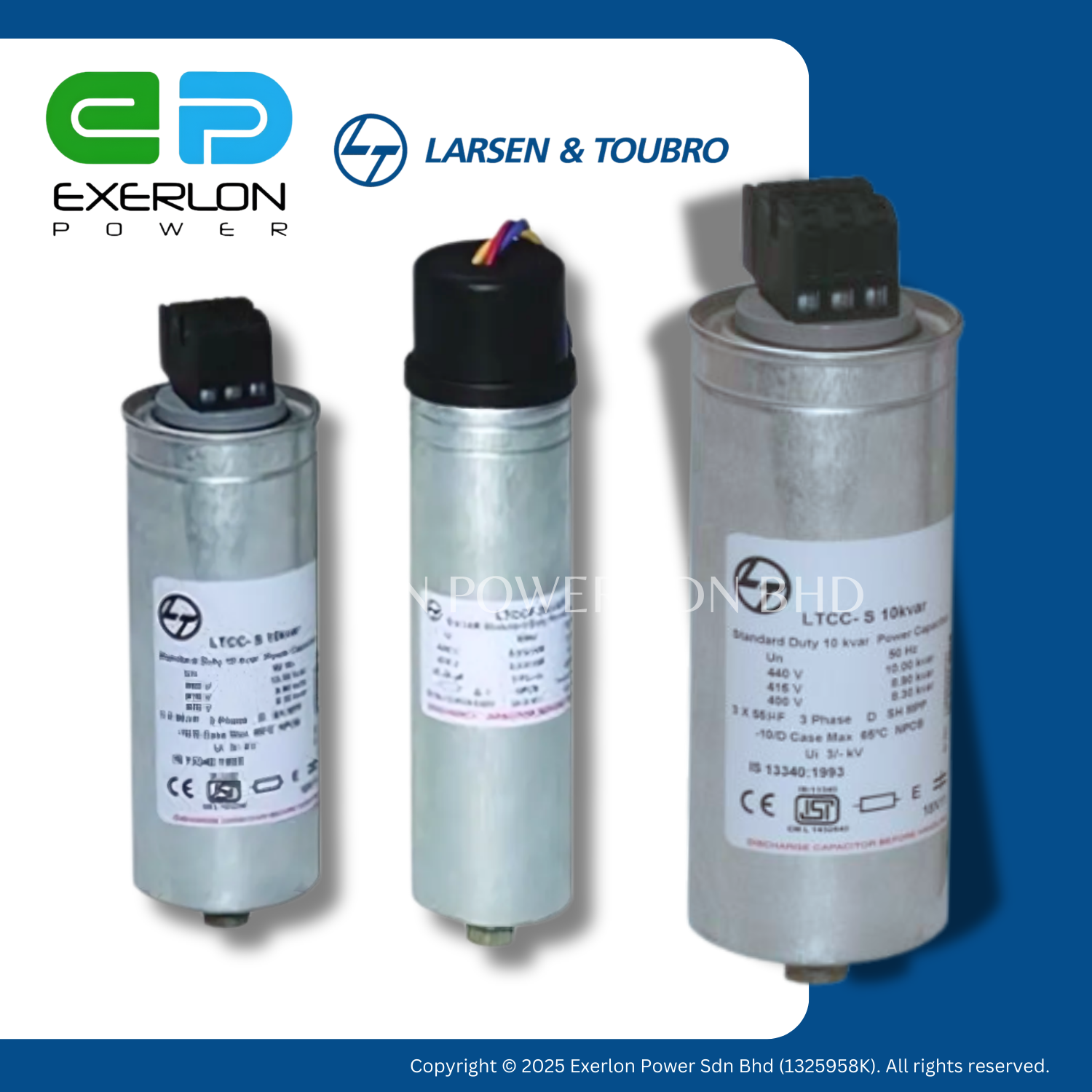

L&T LARSEN & TOUBRO LT Cap Bank 440V 525V power capacitor with cable
Capacitor cap bank Three-phased Cylindrical-Type Power
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM66.00 – RM367.50
-
Warranty included
-
User menu available for download
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
Capacitor cap bank Three-phased Cylindrical-Type Power
Capacitor is used to correct Power Factor for Motors, Low Voltage Transformers and inside Industrial Switchboard. It is sometimes used with blocking reactors with harmonics presence.
Specification
Customer Reviews
Reviews
Clear filtersThere are no reviews yet.
Related Products
ELCO Capacitor Capbank 440V / 525V Power Capacitor (C/W Cables)
In stock
| Voltage Rating |
440 V ,525 V |
|---|---|
| Reactive Power Rating |
1 kVAR ,1.5 kVAR ,10 kVAR ,15 kVAR ,2 kVAR ,2.5 kVAR ,20 kVAR ,25 kVAR ,3 kVAR ,30 kVAR ,5 kVAR |
| Brand |
ELCO |
| Product or Component Type |
Capacitor Bank |
| Material |
Bi-axially Oriented Polypropylene, with Zinc-Aluminium Alloy (Dielectric) ,Extruded Aluminium Can (Case) ,Polyurethane Resin Oven Cured Flame Retardant (Encapsilation / Impregnation) |
| Overvoltage |
1.10* UN, Rated Voltage (For 8 hrs in every 24 hrs) |
| Overcurrent |
1.43* IN, Rated Current |
| Inrush Current |
200 IN |
| Losses |
< 0.2 W/kVAR (Dielectric) ,< 0.5W / kVAR (Including Discharge Resistor) |
| Capacitance Tolerance |
–5% / + 10% |
| Test Voltage |
2.15 UN for 2s (Terminal to Terminal) ,3000V / 10s | 4000V / 10s | 6000V / 10s (Terminal to Case) |
| Estimated Lifespan |
> 150,000 Operating Hours |
| Function Available |
Internal Delta Connection ,Pressure Activated Series Interruptor ,Self-Healing Technology |
| Mounting Mode |
Upright |
EPCOS Capacitor Bank 440V / 525V (C/W Cable)
In stock
| Voltage Rating |
440 V ,525 V |
|---|---|
| Reactive Power Rating |
10 kVAR ,15 kVAR ,2.5 kVAR ,20 kVAR ,25 kVAR ,30 kVAR ,5 kVAR |
| Brand |
EPCOS |
| Product or Component Type |
Capacitor Bank |
| Material |
Biodegradable Soft Resin — Non PCB (Impregnation) ,Extruded Aluminium Can (Case) ,Polypropylene Film (Dielectric) |
| Overvoltage |
VR + 10% (up to 8 h daily) / VR + 15% (up to 30 min daily) ,VR + 20% (up to 5 min daily) / VR + 30% (up to 1 min daily) |
| Overcurrent |
up to 1.3 • IR (up to 1.5 • IR including combined effects of harmonics, overvoltages and capacitance) |
| Inrush Current |
up to 200 • IR |
| Losses |
< 0.2 W/kVAR (Dielectric) ,< 0.45 W/kVAR (Total — Without discharge resistor) |
| Capacitance Tolerance |
–5% / + 10% |
| Test Voltage |
Terminal / Case, VTC: 3000 VAC, 10s ,Terminal / Terminal, VTT: 2.15 • VR, AC, 2 s |
| Estimated Lifespan |
Max. 5000 switchings per year (IEC 60831-1+/2) |
| Function Available |
Cooling: Natural or Forced ,Max. Allowed Fault Current: 1000A (UL810 Standard) ,Overpressure Disconnector ,Self-Healing Technology |
| Mounting Mode |
Upright |
L&T 20-1250A MCCB 10-65kA 2Poles/3Poles/4Poles
In stock
| model |
DU100H ,DY125U ,DN0-100C ,DN0-100D ,DZ1-160D ,DZ1-160N ,DN1-250N ,DN1-250D ,DN2-250N ,DN2-150D ,DN3-400D ,DN3-630N ,DN4-1250N |
|---|---|
| poles |
2 ,3 ,4 |
| currentRating |
20A ,25A ,30A ,40A ,50A ,63A ,80A ,100A ,125A ,160A ,200A ,250A ,320A ,400A ,500A ,630A ,800A ,1000A ,1250A |
| breakingCapacity |
10kA ,36kA ,50kA ,65kA |
L&T 63-400A Fuse switch 3POLES FN Fuse Switch cw link LT FN63 FN100 FN160 FN200 FN250 FN315 FN400
In stock
L&T LARSEN & TOUBRO LT MCB 6kA/10kA 1p 2p 3p 6A 10A 16A 20A 32A 40A 50A 63A BA10 BA20 BA30 Miniture Circuit Breaker
In stock
L&T LT fuse 32a 63a 100a 125a 160a 200a 250a 315a 400a
In stock
