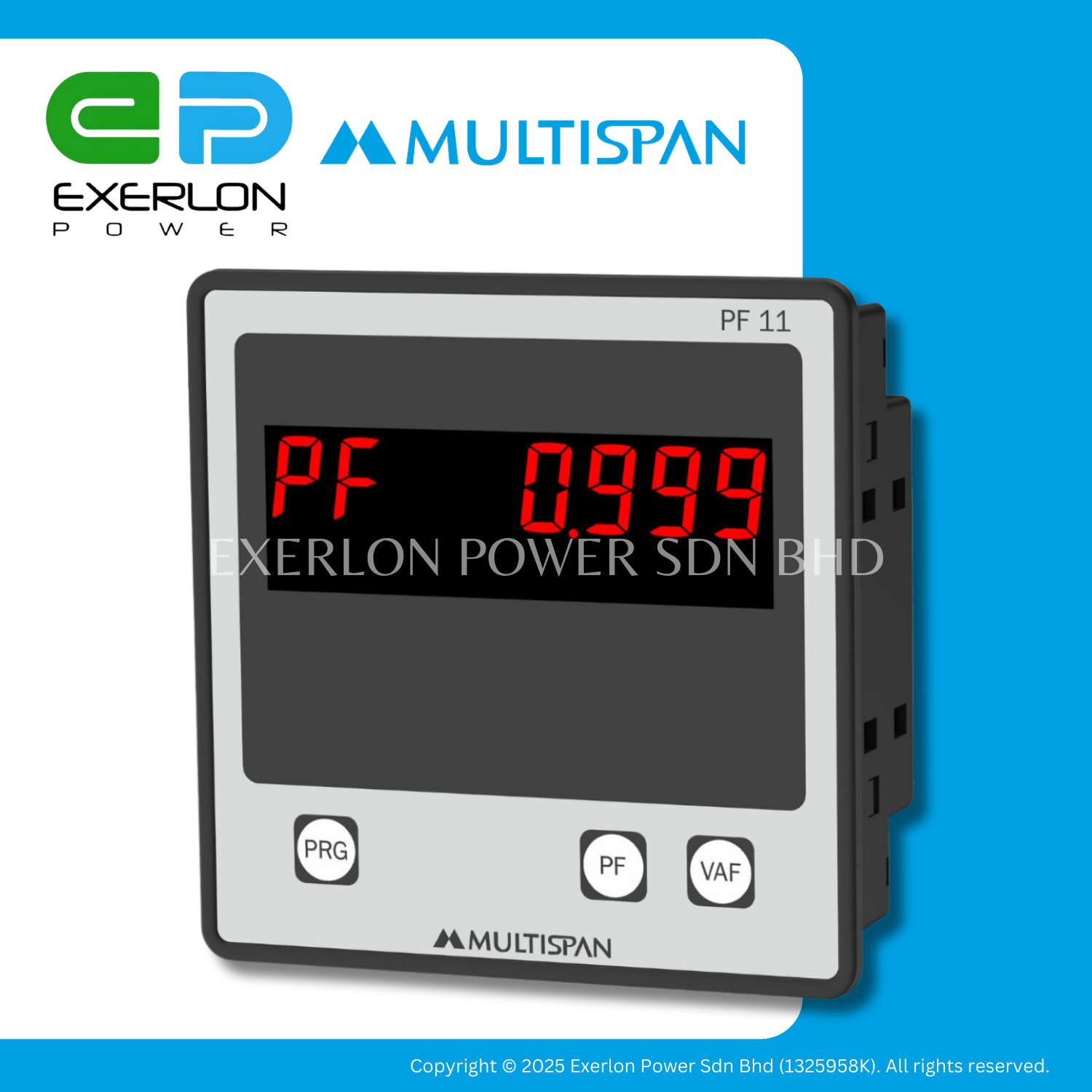

MULTISPAN Digital Power Factor Meter (1 Display) 96×96, PF -11
Model: PF -11 (96×96) – https://www.multispanindia.com/product-detail.php/power-factor-indicator
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM120.00
-
Warranty included
-
User menu available for download
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
Power Factor Indicator
Product: PF-11
- 1Ø-2W
- CT Primary Selectable Upto 9999A
- CT Secondary: 5A
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
Model: MULTISPAN PF-11 (https://www.multispanindia.com/product-detail.php/power-factor-indicator)
Specification
Overview
| Dimensions | 4.3 × 9.6 × 9.6 cm |
|---|---|
| Display |
1 Displays ,4-Digit,1-Line, 7-Seg, 0.56” RED LED |
| Size |
96mm*96mm |
| Range |
0.100 to 1.000 PF CAT III |
| Voltage Rating |
230V AC,50/60Hz |
| Accuracy Class |
Class 0.5 (Standard) |
General
| Brand |
Multispan |
|---|---|
| Product or Component Type |
Power Factor Indicator |
| Model |
PF-11 |
