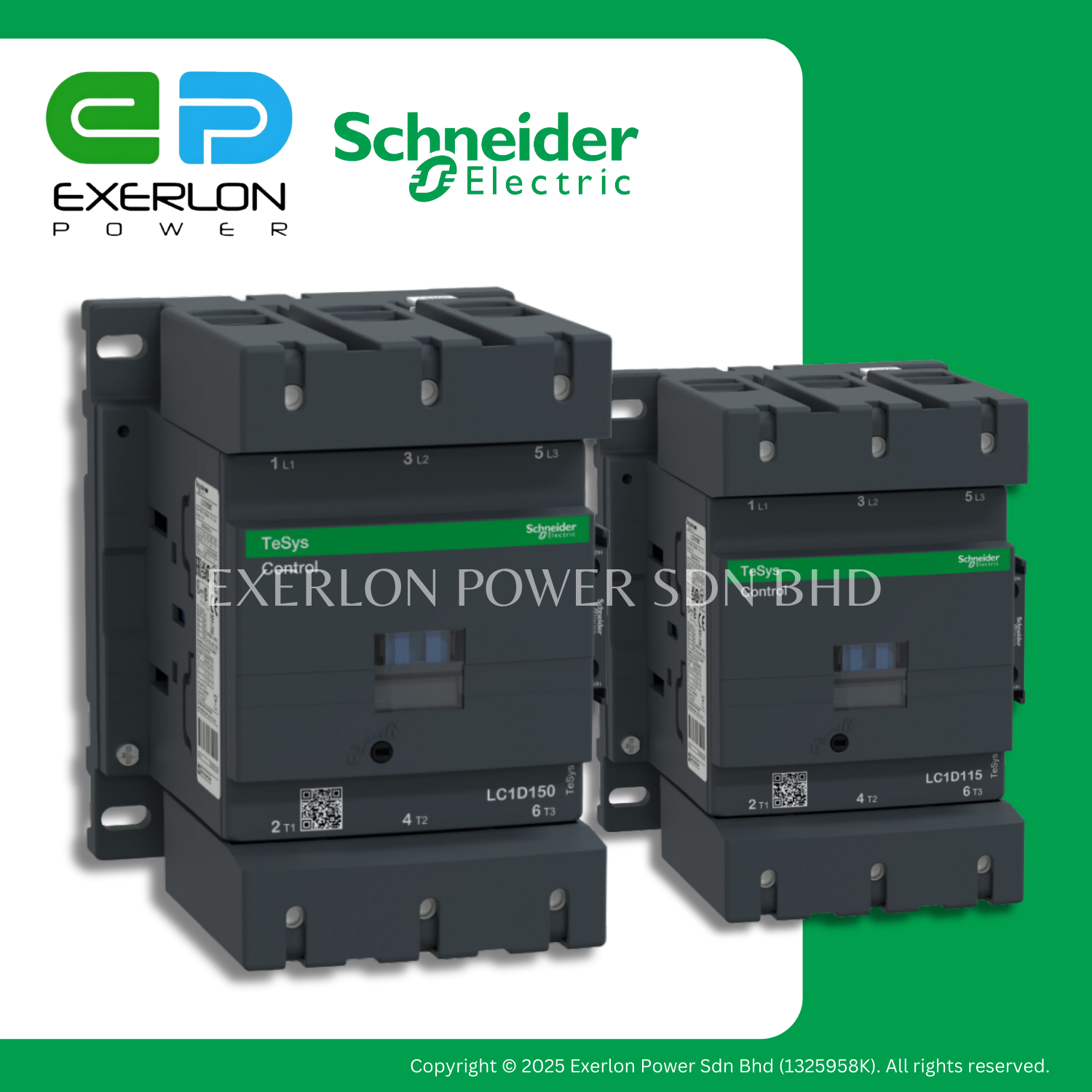

SCHNEIDER Contactor TeSys D, 3NO, 3 Poles, LC1D115 / LC1D150
TeSys contactor offers high reliability with long mechanical and electric life with the full complete line of accessories for motor and load control
Model Available: LC1D115 / LC1D150 With F7 / M7 / U7 / N7
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM1,217.20 – RM1,498.20
-
Warranty included
-
User menu available for download
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
TeSys contactor offers high reliability with long mechanical and electric life with the full complete line of accessories for motor and load control. As the largest selling line of contactor in the world, TeSys Contactors are available for both IEC and NEMA applications and certified by major standards around the world. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Model Available:
– LC1D115F7 (110VAC Coil) – LC1D115U7 (240VAC Coil)
– LC1D115M7 (220VAC Coil) – LC1D115N7 (415VAC Coil)
– LC1D150F7 (110VAC Coil) – LC1D150U7 (240VAC Coil)
– LC1D150M7 (220VAC Coil) – LC1D150N7 (415VAC Coil)
Specification
Overview
| Weight | 2.495 kg |
|---|---|
| Dimensions | 21.5 × 17.5 × 19.5 cm |
| Voltage Rating |
F7 (110VAC) ,M7 (220VAC) ,N7 (415VAC) ,U7 (240VAC) |
| Function Available |
Motor Control ,Resistive Load |
| Utilisation Category |
AC-1 ,AC-3 ,AC-3e ,AC-4 |
| Breaking Capacity |
1100 A at 440 V for power circuit conforming to IEC 60947 |
| Aux. Contact Composition |
1 NO + 1 NC |
General
| Model |
LC1D115 (115A) ,LC1D150 (150A) |
|---|---|
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Product or Component Type |
Contactor |
| Device Short Name |
LC1D |
Frequently Bought Together
SCHNEIDER Contactor TeSys D, 3NO, 3 Poles, LC1D115 / LC1D150
In stock
| Weight | 2.495 kg |
|---|---|
| Dimensions | 21.5 × 17.5 × 19.5 cm |
| Model |
LC1D115 (115A) ,LC1D150 (150A) |
| Voltage Rating |
F7 (110VAC) ,M7 (220VAC) ,N7 (415VAC) ,U7 (240VAC) |
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Product or Component Type |
Contactor |
| Device Short Name |
LC1D |
| Function Available |
Motor Control ,Resistive Load |
| Utilisation Category |
AC-1 ,AC-3 ,AC-3e ,AC-4 |
| Poles |
3 Poles |
| Product Compatibility |
LC1D |
| Breaking Capacity |
1100 A at 440 V for power circuit conforming to IEC 60947 |
| Mechanical Durability |
8 Mcycles |
| Aux. Contact Composition |
1 NO + 1 NC |
| Mounting Mode |
DIN Rail ,Plate |
