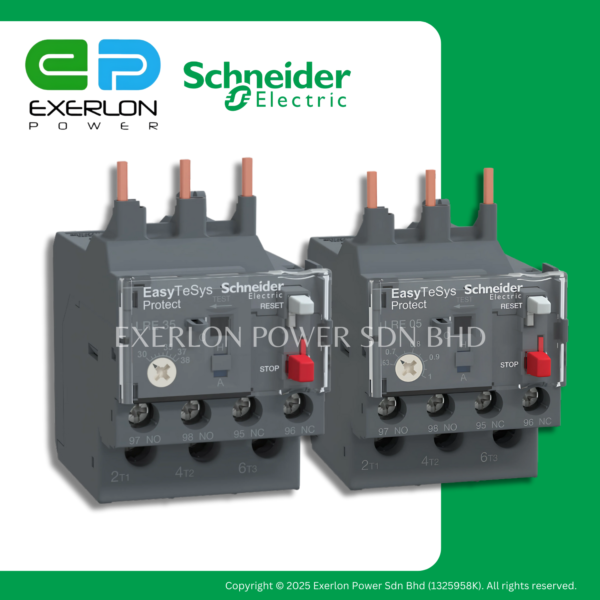

SCHNEIDER Thermal Overload Relay Tesys-E EasyPact TVS 17A-65A LRE322 / LRE353 / LRE355 / LRE357 / LRE359
EasyPact TVS thermal overload relays. Designed to protect motors against overloads, phase failure.
Model Available: LRE322 / LRE353 / LRE355 / LRE357 / LRE359
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM134.70 – RM185.20
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download

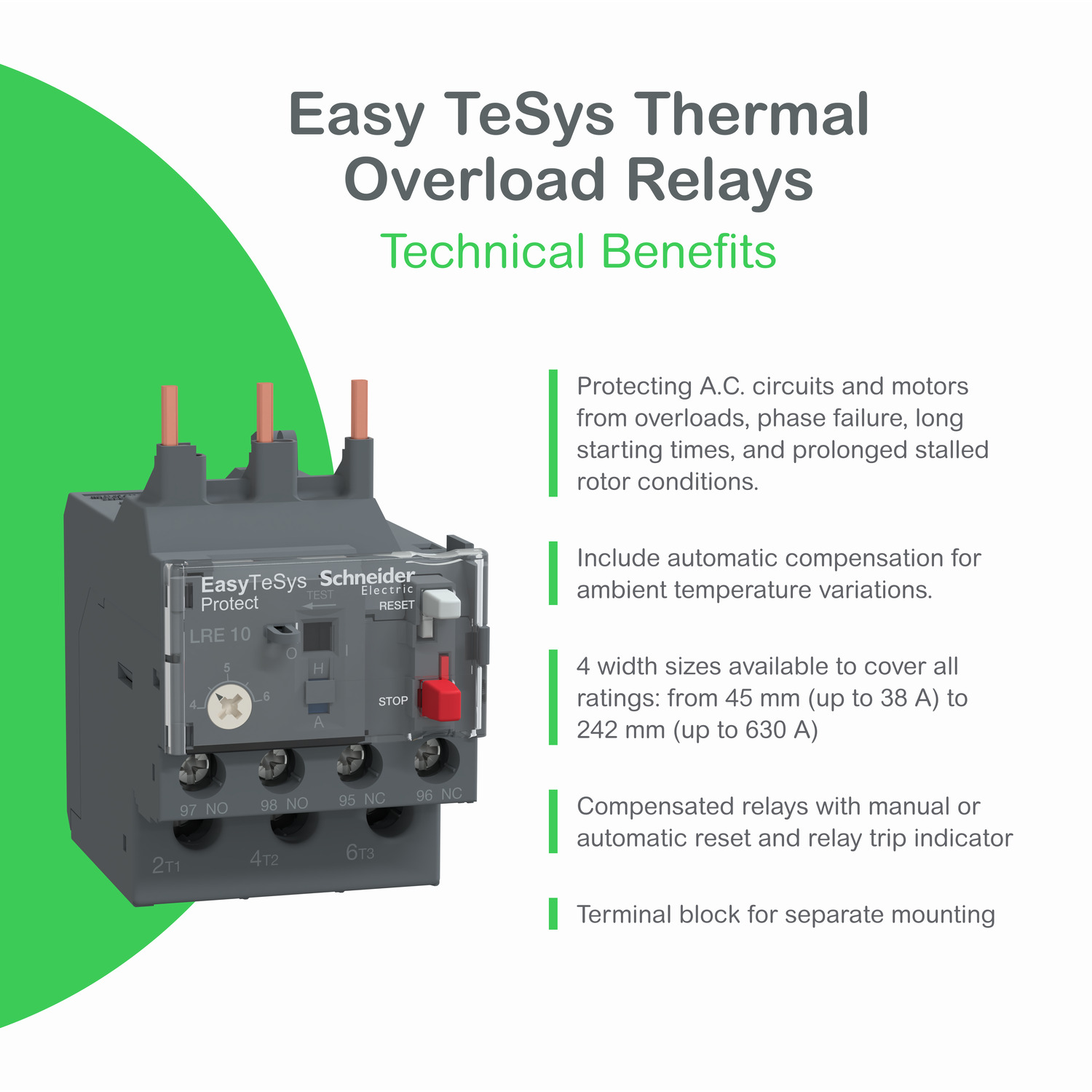

EasyPact TVS thermal overload relays are designed to protect a.c. circuits and motors against:
* Overloads
* Phase failure
* Long starting time
* Prolonged stalled rotor condition.
The thermal relay controls permanently the current driven by the motor. When this current exceeds the setting it’s auxiliary contacts will change state, causing the motor to stop.
1. Adjustment dial Ir.
2. Test button.
Operation of the Test button allows:
– checking of control circuit wiring,
– simulation of relay tripping (actuates both the N/O and N/C contacts).
3. Stop button. Actuates the N/C contact; does not affect the N/O contact.
4. Reset button.
5. Trip indicator.
6. Setting locked by sealing the cover.
7. Selector for manual or automatic reset.
LRE relays are supplied with the selector in the manual position, protected by a cover.
Deliberate action is required to move it to the automatic position
Model Available:
– LRE322 (17 – 25A)
– LRE353 (23 – 32A)
– LRE355 (30 – 40A)
– LRE357 (37 – 50A)
– LRE359 (48 – 65A)
1 review for SCHNEIDER Thermal Overload Relay Tesys-E EasyPact TVS 17A-65A LRE322 / LRE353 / LRE355 / LRE357 / LRE359
Clear filtersYou must be logged in to post a review.
Specification
Overview
| Weight | 0.482 kg |
|---|---|

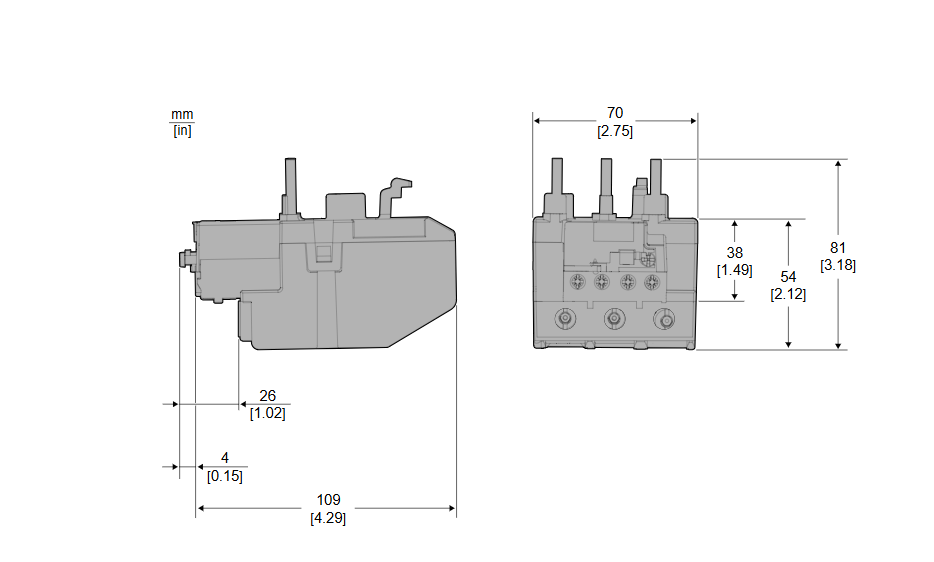

| Dimensions | 12.5 × 9 × 8 cm |
| Function Available |
Motor Protection ,Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Aux. Contact Composition |
1 NO + 1 NC |
General
| Model |
LRE322 (17-25A) ,LRE353 (23-32A) ,LRE355 (30-40A) ,LRE357 (37-50A) ,LRE359 (48-65A) |
|---|---|
| Brand |
Schneider |
| Range of Product |
Easy TeSys Protect |
| Product or Component Type |
Differential Thermal Overload Relay |
| Device Short Name |
LRE |
