SCHNEIDER TOR Thermal Overload Relay TeSys LR2K 0.11A-16A LR2K0301/02/03/04/05/06/07/08/10/12/14/16/21/22
TeSys LR2K is a range of thermal overload relays from 0.06 kW to 5.5kW
Model Available: LR2K0301/02/03/04/05/06/07/08/10/12/14/16/21/22
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM101.30 – RM217.70
-
Warranty included
-
User menu available for download
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
TeSys LR2K is a range of thermal overload relays from 0.06 kW to 5.5kW that can be used as a stand-alone solution or mounted directly on to TeSys K miniature contactors. These overload relays are designed for the protection of motors. They are compensated and phase failure sensitive. Resetting can either be manual or automatic.
Model Available:
– LR2K0301 (0.11 – 0.16A)
– LR2K0302 (0.16 – 0.23A)
– LR2K0303 (0.23 – 0.36A)
– LR2K0304 (0.36 – 0.54A)
– LR2K0305 (0.64 – 0.80A)
– LR2K0306 (0.80 – 1.20A)
– LR2K0307 (1.20 – 1.80A)
– LR2K0308 (1.80 – 2.60A)
– LR2K0310 (2.60 – 3.70A)
– LR2K0312 (3.70 – 5.50A)
– LR2K0314 (5.50 – 8.00A)
– LR2K0316 (8.00 – 11.5A)
– LR2K0321 (10.0 – 14.0A)
– LR2K0322 (12.0 – 16.0A)
Specification
Overview
| Weight | 0.1573 kg |
|---|---|
| Dimensions | 8.5 × 7 × 5 cm |
| Function Available |
Motor Protection |
| Aux. Contact Composition |
1 NO + 1 NC |
General
| Model |
LR2K0301 (0.11-0.16) ,LR2K0302 (0.16-0.23) ,LR2K0303 (0.23-0.36) ,LR2K0304 (0.36-0.54) ,LR2K0305 (0.54-0.80) ,LR2K0306 (0.80-1.20) ,LR2K0307 (1.20-1.80) ,LR2K0308 (1.80-2.60) ,LR2K0310 (2.60-3.70) ,LR2K0312 (3.70-5.50) ,LR2K0314 (5.50-8.00) ,LR2K0316 (8.00-11.5) ,LR2K0321 (10.0-14.0) ,LR2K0322 (12.0-16.0) |
|---|---|
| Brand |
Schneider |
| Range of Product |
TeSys LRK |
| Product or Component Type |
Differential Thermal Overload Relay |
| Device Short Name |
LR2K |
Customer Reviews
Reviews
Clear filtersThere are no reviews yet.
Related Products
CHINT Next Series Thermal Overload Relay (TOR) NXR-25 / NXR-38 / NXR-100 / NXR-200
In stock
| Model |
NXR-100 ,NXR-200 ,NXR-25 ,NXR-38 |
|---|---|
| Current Rating |
0.1-0.16A ,0.16-0.25A ,0.25-0.4A ,0.4-0.63A ,0.63-1A ,1-1.6A ,1.6-2.5A ,100-200A ,12-18A ,17-25A ,2.5-4A ,23-32A ,30-38A ,30-40A ,37-50A ,4-6A ,48-65A ,5.5-8A ,55-70A ,63-80A ,7-10A ,80-100A ,80-160A ,9-13A |
| Brand |
CHINT |
| Function Available |
Manual & Automatic Reset ,Phase Loss Protection ,Stop Button ,Temperature Compensation ,Test Button ,Trip Indication |
| Aux. Contact Composition |
1 NO + 1 NC |
| Product or Component Type |
Differential Thermal Overload Relay |
DELAB Voltage monitoring relay DVS-1000 DVS-1000E DVS-2000
In stock
LS TOR MT-32 Thermal Overload Relay mt32
In stock
| Model |
MT-32 ,MT-63 ,MT-95 ,MT-150 ,MT-225 ,MT-400 |
|---|---|
| Current Rating |
0.1-0.16A ,0.16-0.25A ,0.25-0.4A ,0.4-0.63A ,0.63-1A ,1-1.6A ,1.6-2.5A ,2.5-4A ,4-6A ,5-8A ,6-9A ,7-10A ,9-13A ,12-18A ,16-22A ,18-25A ,22-32A ,28-40A ,24-36A ,34-50A ,45-65A ,54-75A ,63-85A ,70-95A ,80-100A ,85-105A ,95-130A ,100-150A ,85-125A ,100-160A ,120-180A ,160-240A ,120-185A ,200-330A ,260-400A |
MIKRO Protection Relay Earth fault relay over current relay NX201A NX202A NX203A NX204A
In stock
SCHNEIDER 240VAC Electronic Over Current Relay LT4706M7S LT4730M7S LT4760M7S
In stock
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model |
LT4706M7S (0.5-5A) ,LT4730M7S (3-25A) ,LT4760M7S (5-50A) |
| Brand |
Schneider |
| Range of Product |
TeSys |
| Product or Component Type |
Electronic Overcurrent Relay |
| Function Available |
Locked Rotor, Mechanical Jamming I > 3 x Isetting ,Overload Imax > Isetting ,Sensitivity to Phase Failure |
| Voltage Rating |
200…240 VAC |
| Device Short Name |
LT47 |

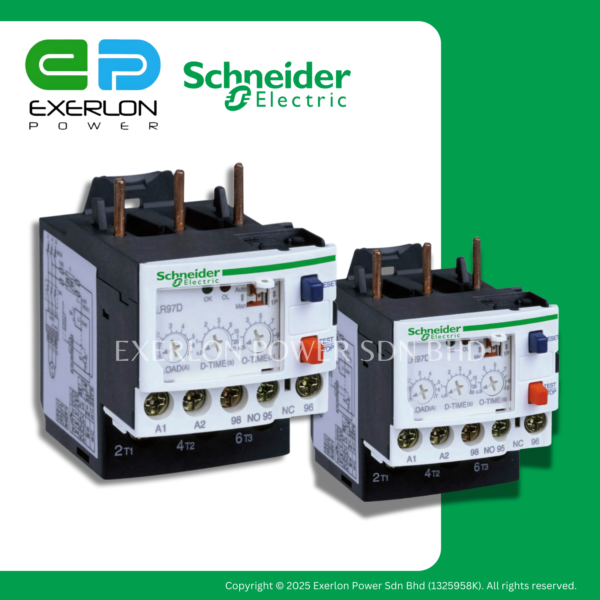

SCHNEIDER Electronic Over Current Relay TeSys 240VAC LR97D07M7 / LR97D25M7 / LR97D38M7
