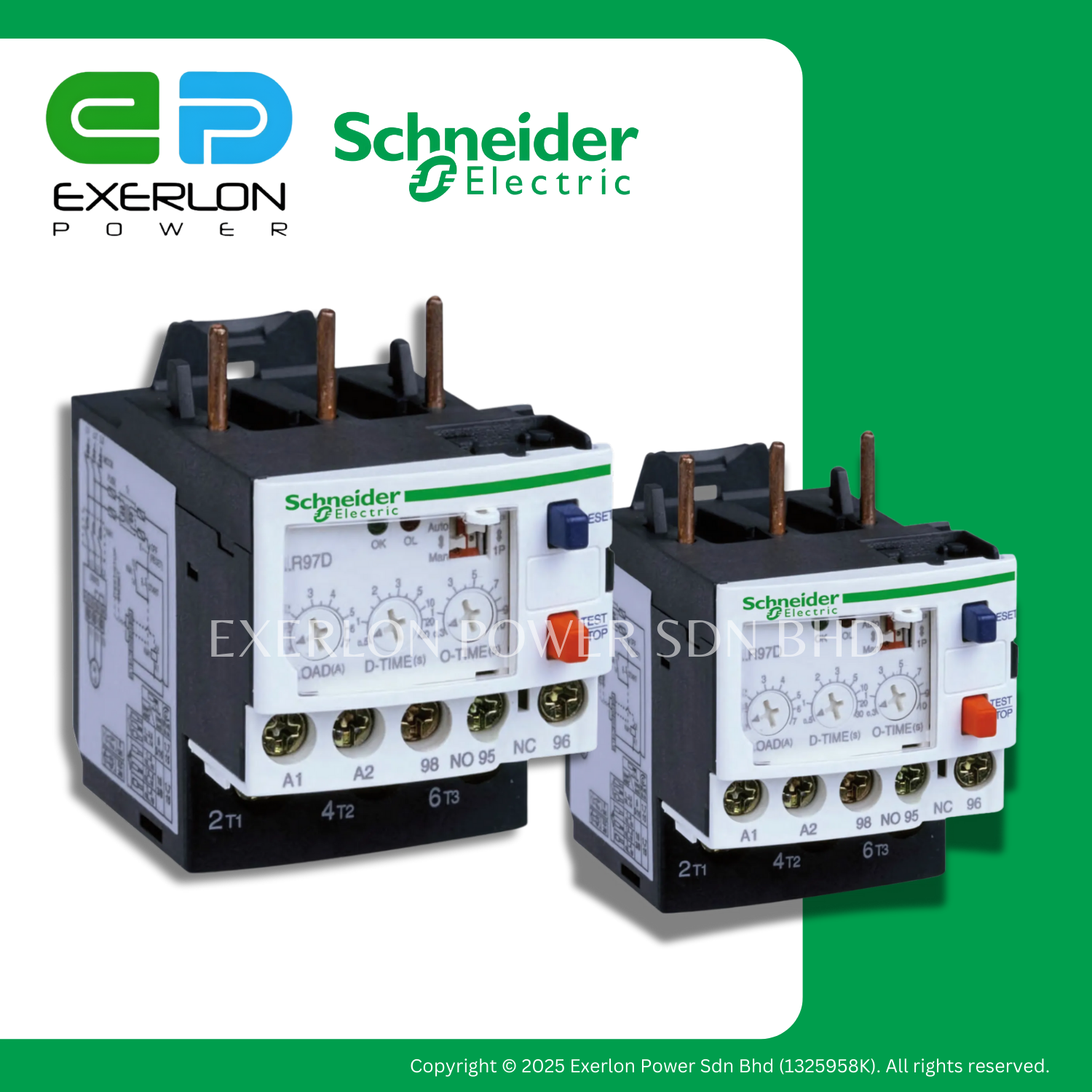

SCHNEIDER Electronic Over Current Relay TeSys 240VAC LR97D07M7 / LR97D25M7 / LR97D38M7
TeSys LR97D electronic overcurrent relays provide protection against locked rotor, seizure or mechanical shocks.
Model Available: LR97D07M7 / LR97D25M7 / LR97D38M7
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM200.00 – RM222.20
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
TeSys LR97D electronic overcurrent relays provide protection against locked rotor, seizure or mechanical shocks. Unlike the thermal overload relays, these relays do not have a thermal memory. They have definite time characteristics with adjustable current threshold and time delay.
– Direct mounting beneath TeSys Model d contactors up to LC1D38, width 45 mm
– Screw clamp or lug connections
– Settings can be locked by sealing the transparent cover
– It provides 3 dials to adjust the protection
– Compact (45 mm wide) for easy integration into motor starter functions
Model Available:

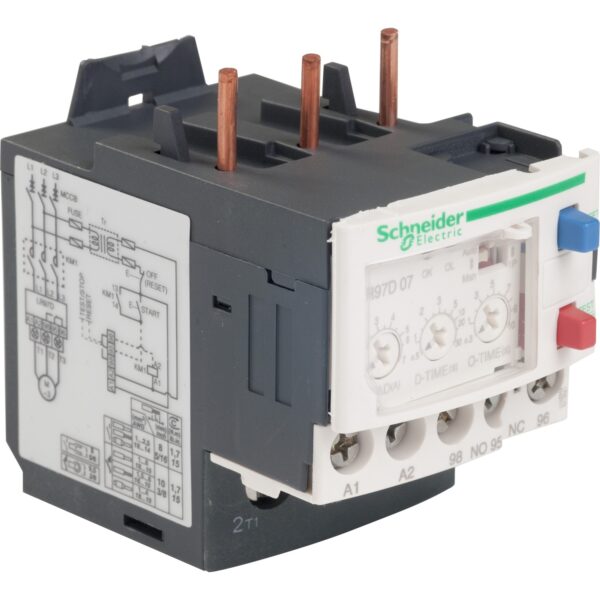

– LR97D07M7 (1.2 – 7A)
– LR97D25M7 (5 – 25A)
– LR97D38M7 (20 – 38A)
You must be logged in to post a review.
Specification
Overview
| Weight | 0.19 kg |
|---|---|

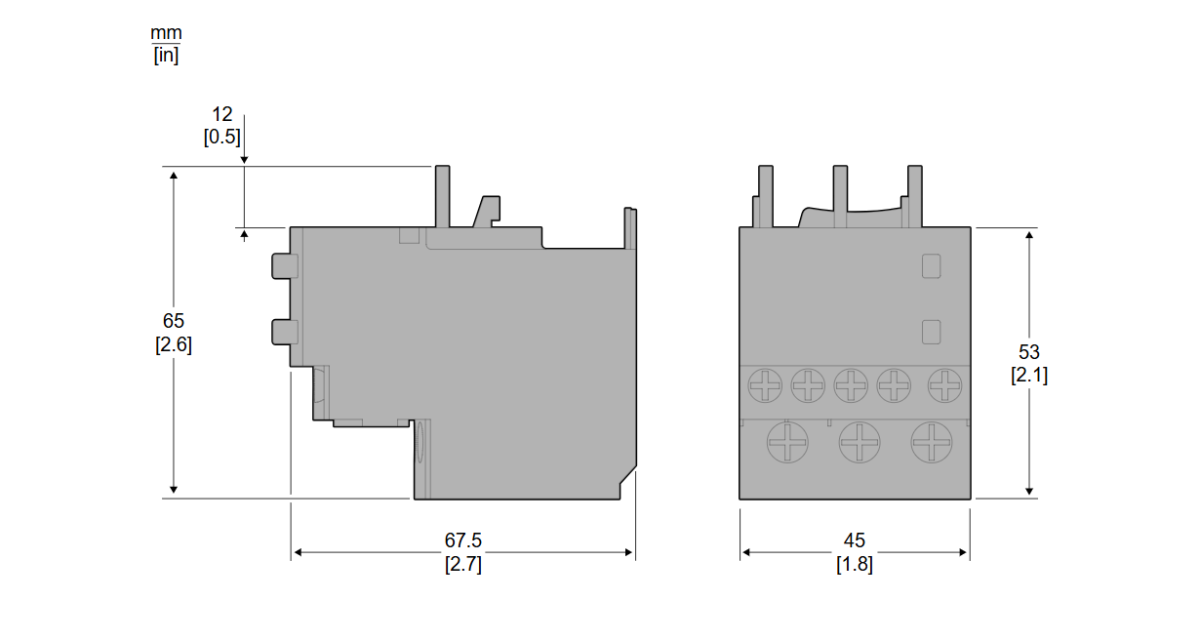

| Dimensions | 7.62 × 7.11 × 5.33 cm |
| Function Available |
Locked Rotor, Mechanical Jamming I > 3 x Isetting ,Overload Imax > Isetting ,Sensitivity to Phase Failure |
| Voltage Rating |
200…240 VAC |
| Aux. Contact Composition |
1 C/O |
General
| Model |
LR97D07M7 (1.2-7A) ,LR97D25M7 (5-25A) ,LR97D38M7 (20-38A) |
|---|---|
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Device Short Name |
LR97 |
| Product or Component Type |
Electronic Overcurrent Relay |
Frequently Bought Together
SCHNEIDER Electronic Over Current Relay TeSys 240VAC LR97D07M7 / LR97D25M7 / LR97D38M7
In stock
RM200.00 – RM222.20
SKU:
SCHNEIDER LR97D●●M7
| Weight | 0.19 kg |
|---|---|
| Dimensions | 7.62 × 7.11 × 5.33 cm |
| Model |
LR97D07M7 (1.2-7A) ,LR97D25M7 (5-25A) ,LR97D38M7 (20-38A) |
| Brand |
Schneider |
| Range of Product |
TeSys Deca |
| Device Short Name |
LR97 |
| Product or Component Type |
Electronic Overcurrent Relay |
| Function Available |
Locked Rotor, Mechanical Jamming I > 3 x Isetting ,Overload Imax > Isetting ,Sensitivity to Phase Failure |
| Product Compatibility |
LC1D09…D38 |
| Voltage Rating |
200…240 VAC |
| Mounting Mode |
Direct on Contactor / Rail |
| Aux. Contact Composition |
1 C/O |
| Reset |
Automatic reset 120 s fixed ,Electrical by interruption of power supply for minimum 0.1 s ,Manual reset |
