Warranty included
Schneider 24V Illuminated Green Flush/Red Projecting Double-Headed Push Button 22mm XB5AW73731B5 1NO+1NC
ZB5AZ009 + ZBVB1 + ZB5AW7L3741 = XB5AW73731B5
Mode Available: XB5AW73731B5
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM103.20
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download

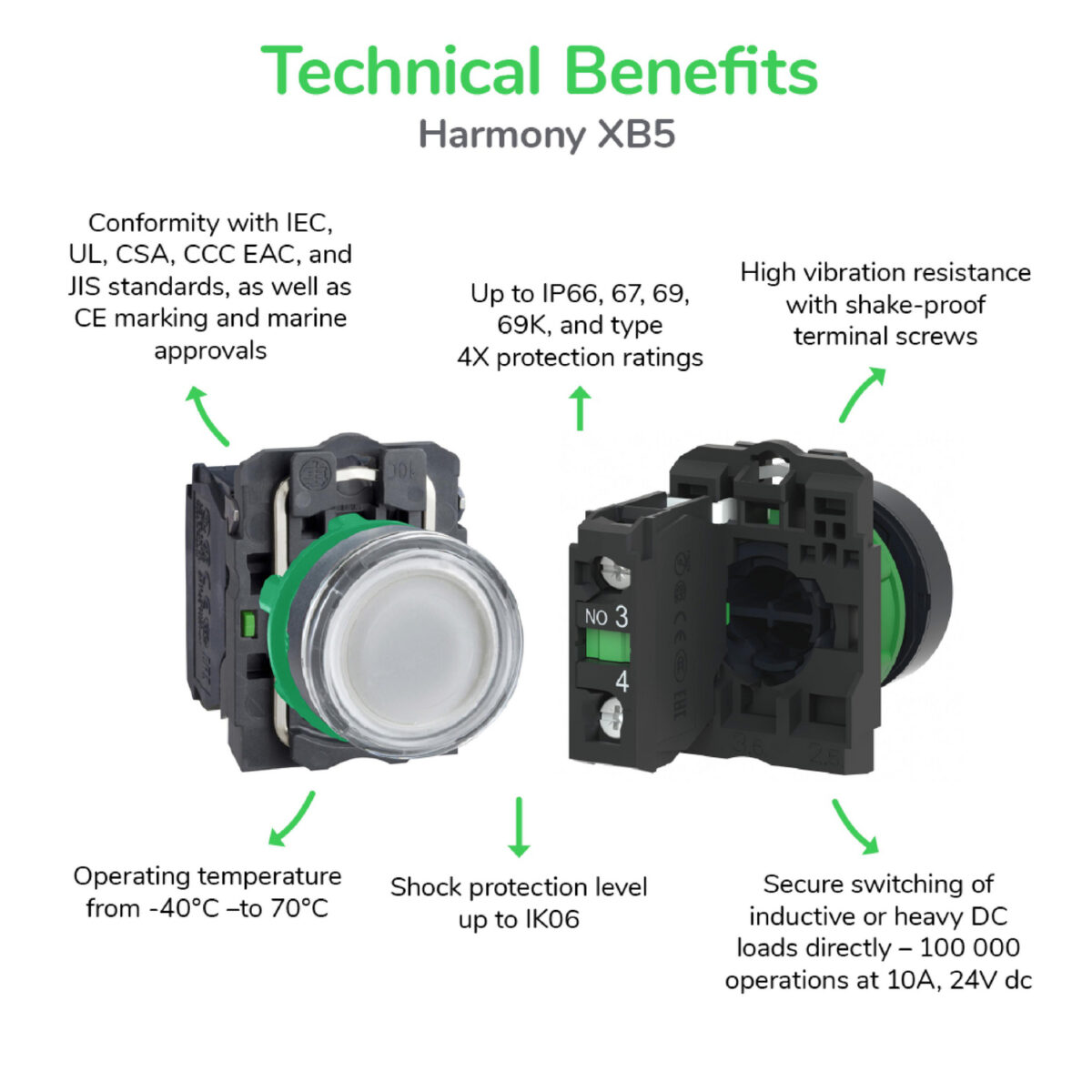

This Harmony XB5, double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC and uses screw clamp terminals. It is marked with “I” and “O” symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Model Available:
– XB5AW73731B5
1 review for Schneider 24V Illuminated Green Flush/Red Projecting Double-Headed Push Button 22mm XB5AW73731B5 1NO+1NC
Clear filtersYou must be logged in to post a review.
Specification
Overview
| Mounting Diameter |
22 mm |
|---|
General
| Brand |
Schneider |
|---|---|
| Range of Product |
Harmony XB5 |
| Product or Component Type |
Illuminated Double-Headed Push Button |
| Device Short Name |
XB5 |
| Material |
Dark Grey Plastic |
| Model |
XB5AW73731B5 |
Customer Reviews
1 review for Schneider 24V Illuminated Green Flush/Red Projecting Double-Headed Push Button 22mm XB5AW73731B5 1NO+1NC
Clear filters-
The Schneider XB5AW73731B5 24V illuminated push button features green flush and red projecting heads with 1NO+1NC contacts, ideal for clear status indication and durable control panel operation.
