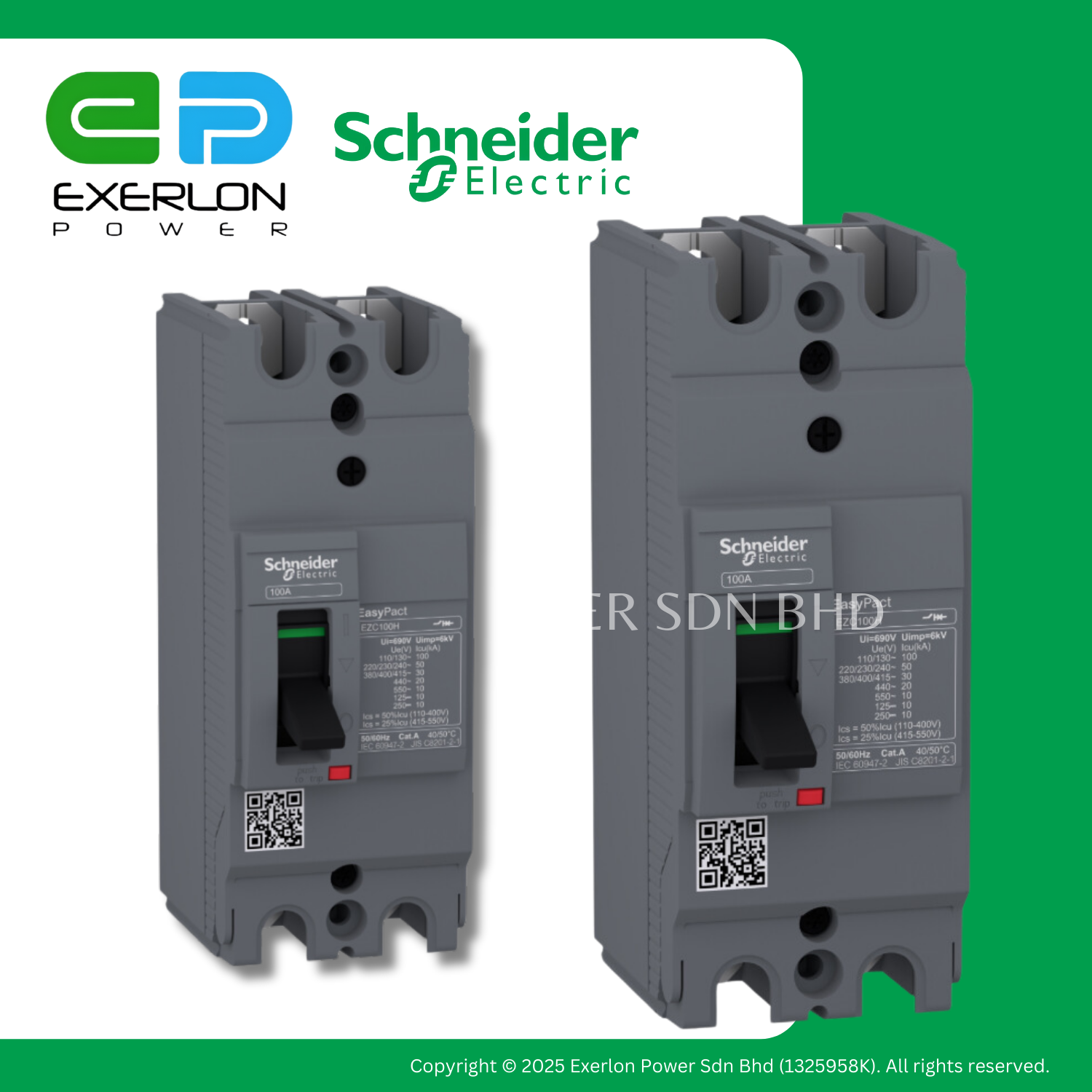

SHCNEIDER MCCB EasyPact EZC100H 50kA 2 Poles 20A-63A EZC100H2020/H2032/H2040/H2063
Molded/Moulded Case Circuit Breaker (MCCB) – Schneider Electric / Merlin Gerin (EasyPact EZC)
Model Available: EZC100H2020/H2032/H2040/H2063
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM165.40
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download

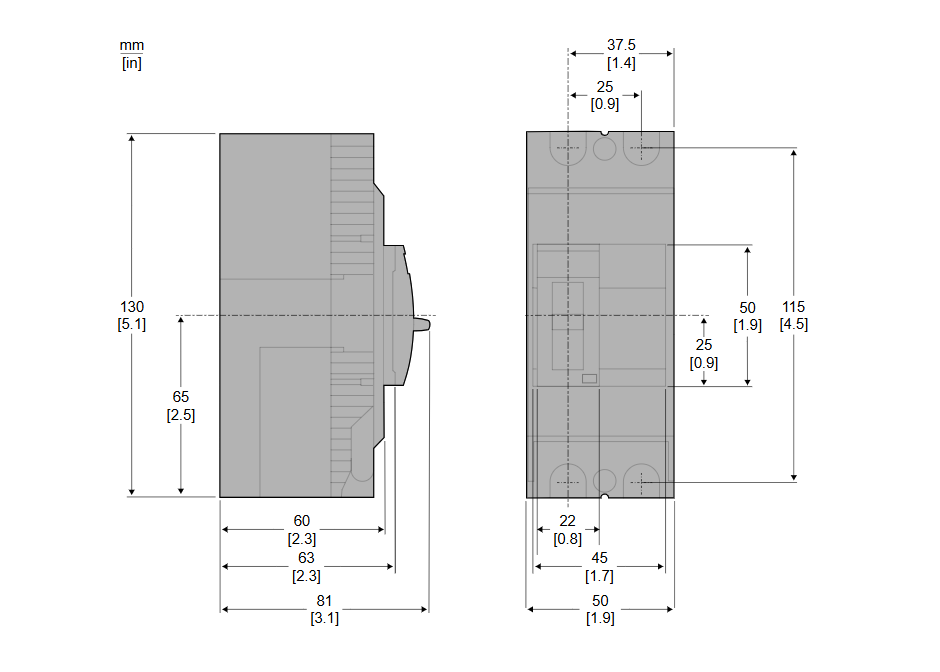

EasyPact EZC100H is a 2 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 50kA rms at 240VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 20A – 63A. The trip unit provides fixed overload and instantaneous protections. This 2 poles version (50mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Model Available:
– EZC100H2020 (20A)
– EZC100H2032 (32A)
– EZC100H2040 (40A)
– EZC100H2063 (63A)
You must be logged in to post a review.
Specification
Overview
| Weight | 0.559 kg |
|---|---|
| Dimensions | 14 × 5.5 × 9.5 cm |
| Current Rating |
20A ,32A ,40A ,63A |
| Breaking Capacity |
50 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Function Available |
Overload Protection ,Short-Circuit Protection |
General
| Brand |
Schneider |
|---|---|
| Range of Product |
EasyPact |
| Product or Component Type |
Circuit Breaker |
| Device Short Name |
Easypact EZC100H |
Frequently Bought Together
SHCNEIDER MCCB EasyPact EZC100H 50kA 2 Poles 20A-63A EZC100H2020/H2032/H2040/H2063
In stock
RM165.40
SKU:
SCHNEIDER EZC100H2●●●
| Weight | 0.559 kg |
|---|---|
| Dimensions | 14 × 5.5 × 9.5 cm |
| Current Rating |
20A ,32A ,40A ,63A |
| Brand |
Schneider |
| Range of Product |
EasyPact |
| Product or Component Type |
Circuit Breaker |
| Device Short Name |
Easypact EZC100H |
| Poles |
2 Poles |
| Breaking Capacity |
50 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Function Available |
Overload Protection ,Short-Circuit Protection |
| Mounting Mode |
Fixed |
| Mechanical Durability |
13000 cycles |
| Electrical Durability |
Category A: 4000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
