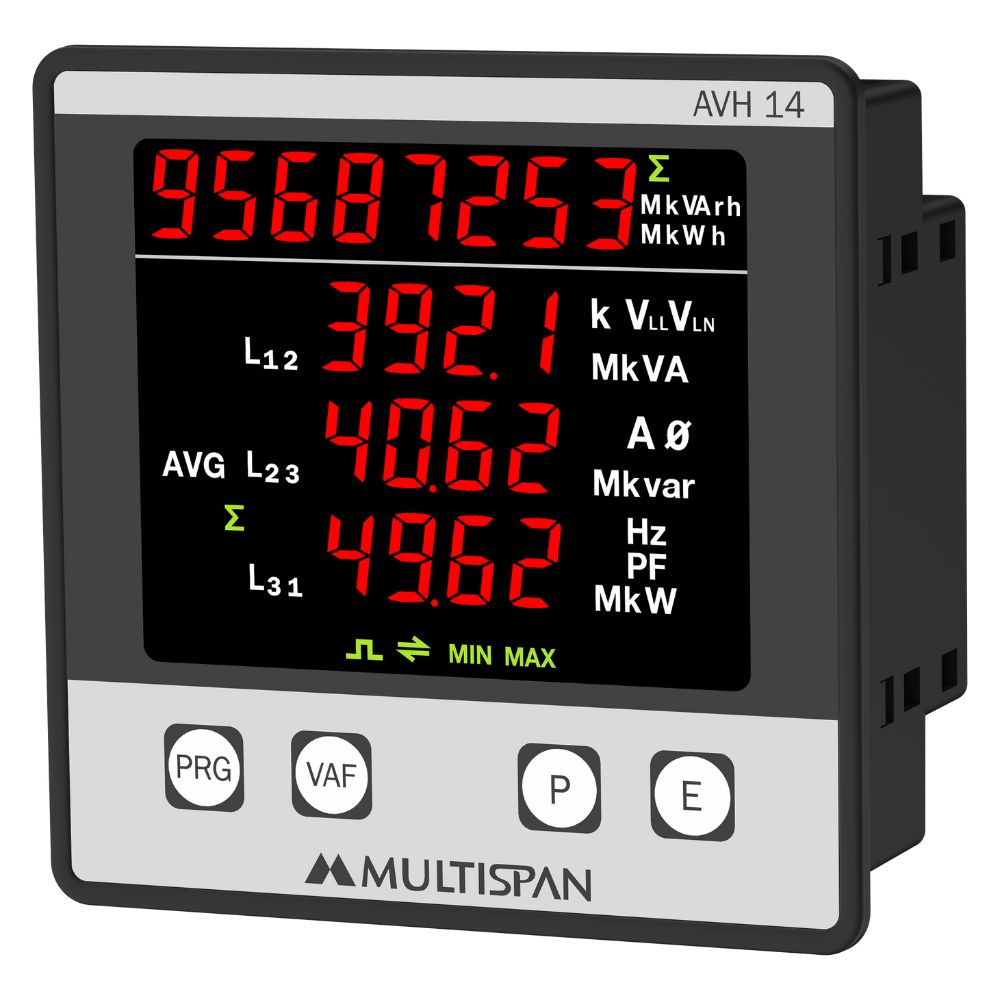

MULTISPAN 3 Phase Digital Power Meter (DPM) with kWh Display 96×96, AVH-14

SKU: MULTISPAN AVH-14

Model: AVH – 14N (96X96) – https://www.multispanindia.com/product-detail.php/multifunction-meter-4-line-display

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

RM336.00

Add to compare
Add to wishlist
0 People watching this product now!
Modern Download Button Download Datasheet
  • Warranty included

More details

  • User menu available for download

More details

Payment Methods:

  • Pick up from any Exerlon Power HQ branch

To pick up today

Free

  • Pick up from any Exerlon Power Penang branch

To pick up today

Free

  • Pick up from any Exerlon Power Johor branch

To pick up today

Free

  • Pick up from any Exerlon Power Ipoh branch

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Charges will be applied

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty included

More details

  • User menu available for download

More details

Multifunction Meter – 4 Line Display

Product: AVH-14

  • 1Ø-2W, 3Ø-3W/4W Selectable
  • Separate Display for KWH Reading
  • Primary Voltage 100V to 520kVAC
  • Secondary Voltage 100V to 520V AC
  • Pulse & RS-485 MODBUS Communication
  • Accuracy Class 0.5
  • Size(mm): (H)96 x (W)96 x (D)54
  • Supply: 100-270V AC/DC, 50/60 Hz

Model: MULTISPAN AVH-14 (https://www.multispanindia.com/product-detail.php/multifunction-meter-4-line-display)

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “MULTISPAN 3 Phase Digital Power Meter (DPM) with kWh Display 96×96, AVH-14”

📥Product Datasheet (AVH-14)

📑Instruction Sheet

Specification

Overview

Dimensions 5.4 × 9.6 × 9.6 cm
Measurement Parameters

Energy: Total kWh, Total kVAh, Total kVARh

,

Frequency

,

Phase Angle

,

Power Factor

,

Power: Total kW, kW per Phase, Total kVA, kVA per Phase, Total kVAR, kVAR per Phase
Display

4 Displays

,

Lower: 4 Digit, 3 Line 7 Seg 0.40”,RED

,

Upper: 8 Digit, 7 Seg 0.40”,RED LED
Function Available

PROGRAM, VAF, POWER, ENERGY

,

Separate Display for KWH Reading
Voltage Rating

100 to 270V AC/DC, 50/60Hz
Accuracy Class

Class 0.5 (Standard)
Size

96mm*96mm

General

Brand

Multispan
Product or Component Type

Multifunction Meter – 4 Line Display
Model

AVH-14
