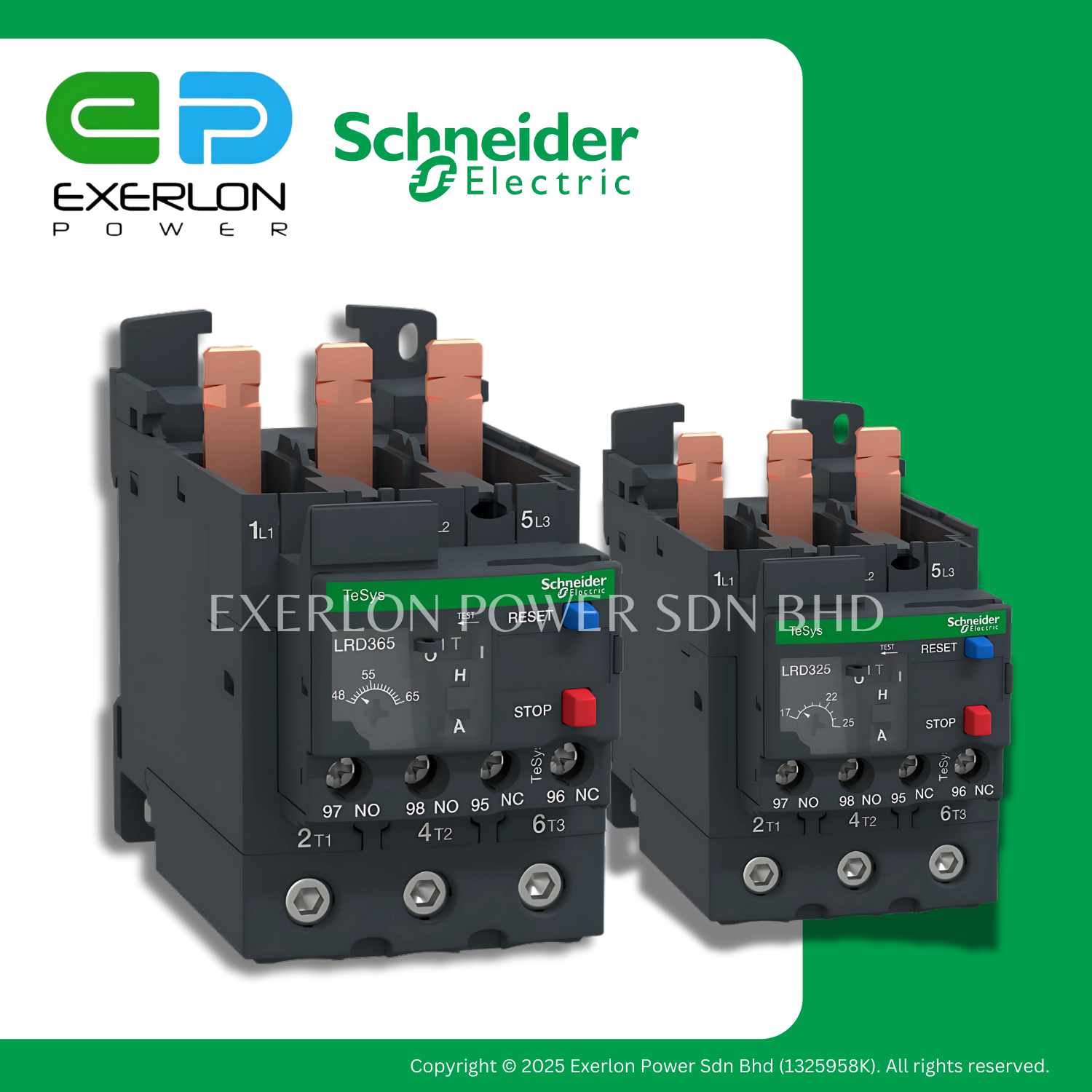

SCHNEIDER TOR Thermal Overload Relay LRD325/332/340/350/365 (17-65A)
Schneider Electric Differential Thermal Overload Relays – TeSys LRD Range
* COMPATIBLE FOR LC1D40A LC1D50A LC1D65A CONTACTOR
Model Available: LRD325/332/340/350/365
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM267.20 – RM280.50
-
Warranty included
-
User menu available for download
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download
TeSys LRD thermal overload relay, 25-65A/690V, thermal setting range 17-25/23-32/30-40/37-50/48-65A, tripping class 10A, for protection of 3-phase motors 11-30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Model Available:
– LRD325 (17-25A)
– LRD332 (23-32A)
– LRD340 (30-40A)
– LRD350 (37-50A)
– LRD365 (48-65A)
Specification
Overview
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Current Rating |
LRD325 (17-25A) ,LRD332 (23-32A) ,LRD340 (30-40A) ,LRD350 (37-50A) ,LRD365 (48-65A) |
| Function Available |
Motor Protection |
| Aux. Contact Composition |
1 NO + 1 NC |
General
| Brand |
Schneider |
|---|---|
| Range of Product |
TeSys ,TeSys Deca |
| Product or Component Type |
Differential Thermal Overload Relay |
| Device Short Name |
LRD |
