SCHNEIDER Illuminated Spring Return Push Button 22mm, 1 NO+1 NC XB4BW31/33/34/35/36 (B5-24V / M5-230…240V)
Harmony XB4 Illuminated push-button 1NO+1NC
Model Available:
24VAC/DC –> XB4BW31/33/34/35/36B5
240VAC –> XB4BW31/33/34/35/36M5
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
RM82.50 – RM95.30
0
People watching this product now!
Payment Methods:
-
Pick up from any Exerlon Power HQ branch
To pick up today
Free
-
Pick up from any Exerlon Power Penang branch
To pick up today
Free
-
Pick up from any Exerlon Power Johor branch
To pick up today
Free
-
Pick up from any Exerlon Power Ipoh branch
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Charges will be applied
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty included
-
User menu available for download

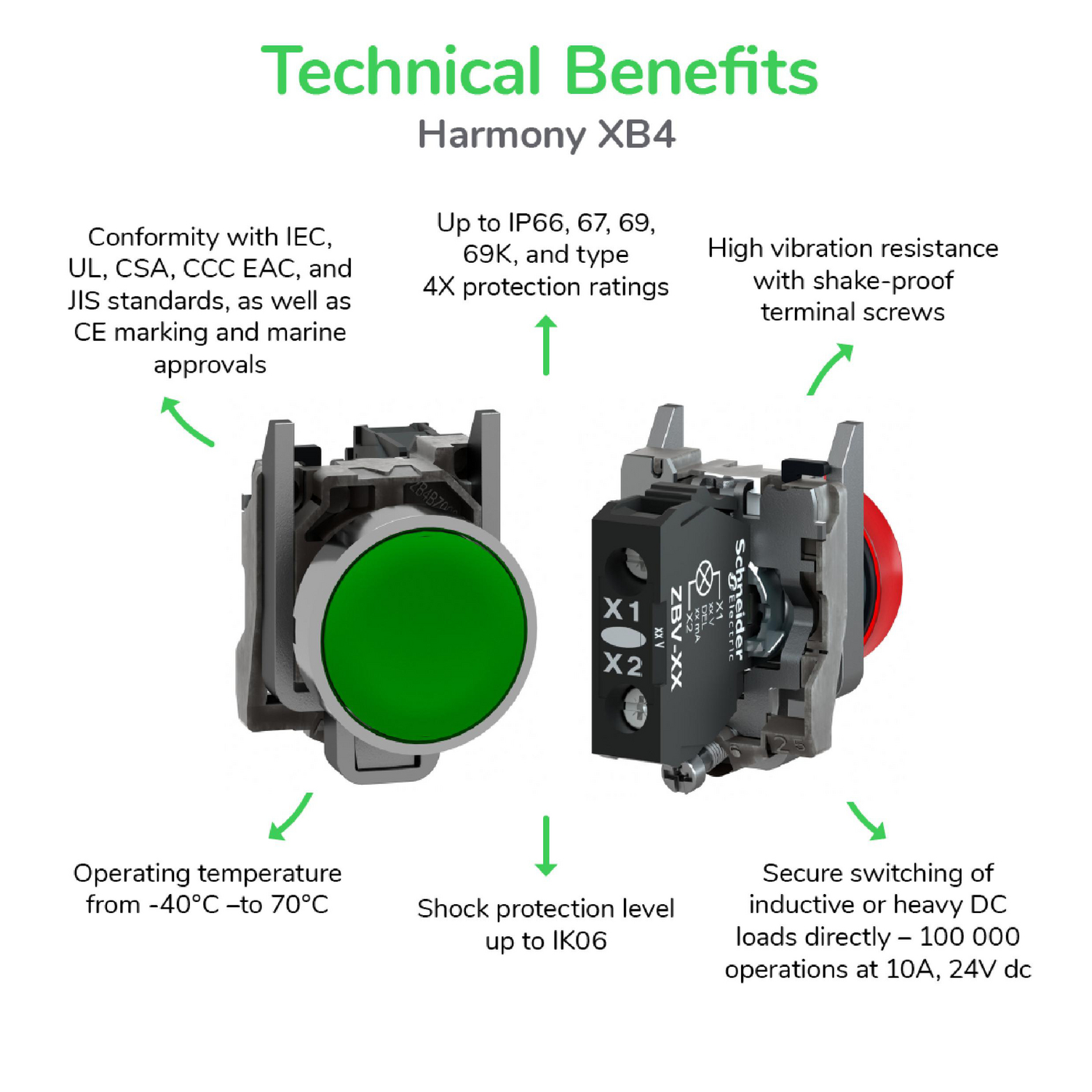

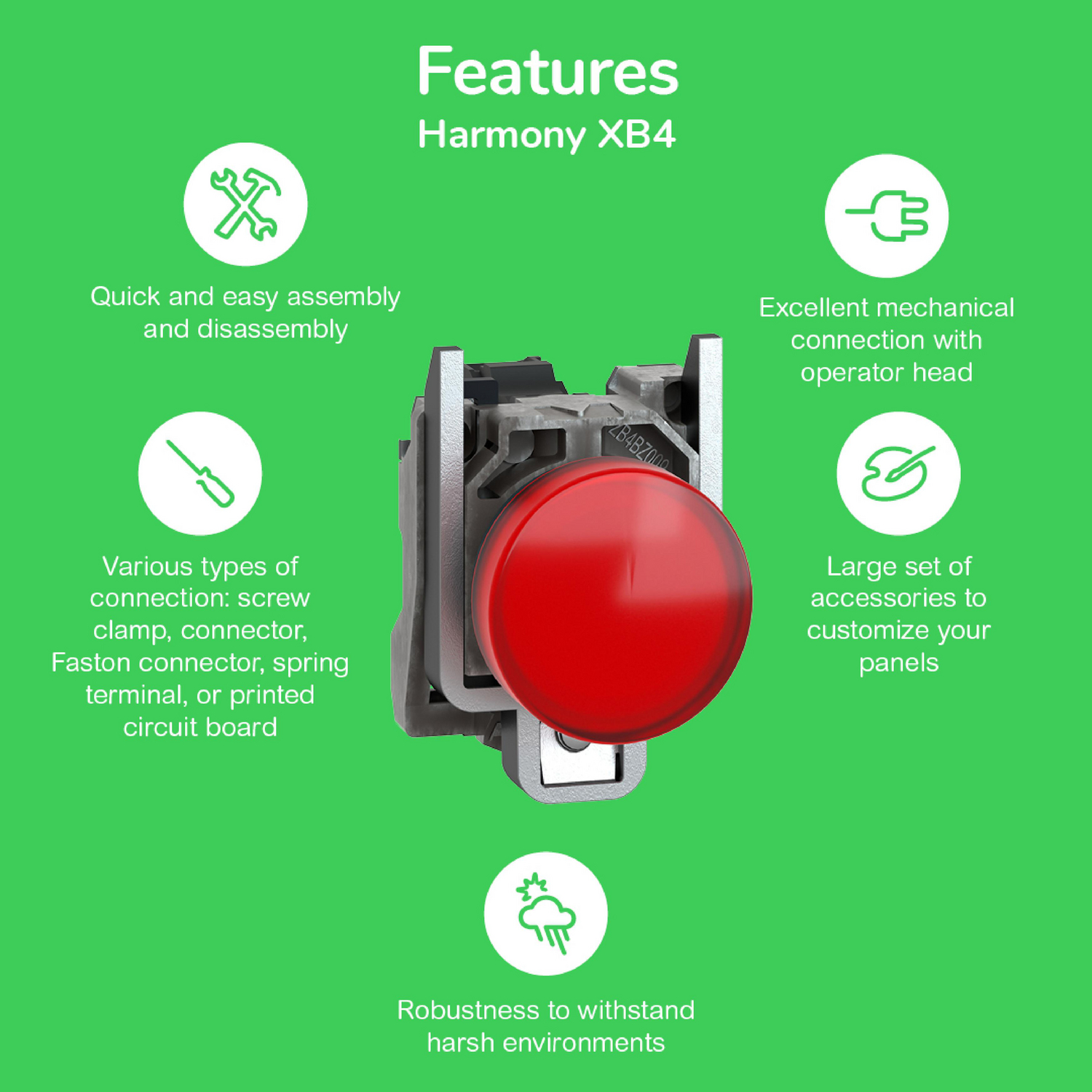

This Harmony XB4 illuminated modular white push button operates with a spring return mechanism, is supplied with 24VAC/DC / 220…240VAC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long-lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

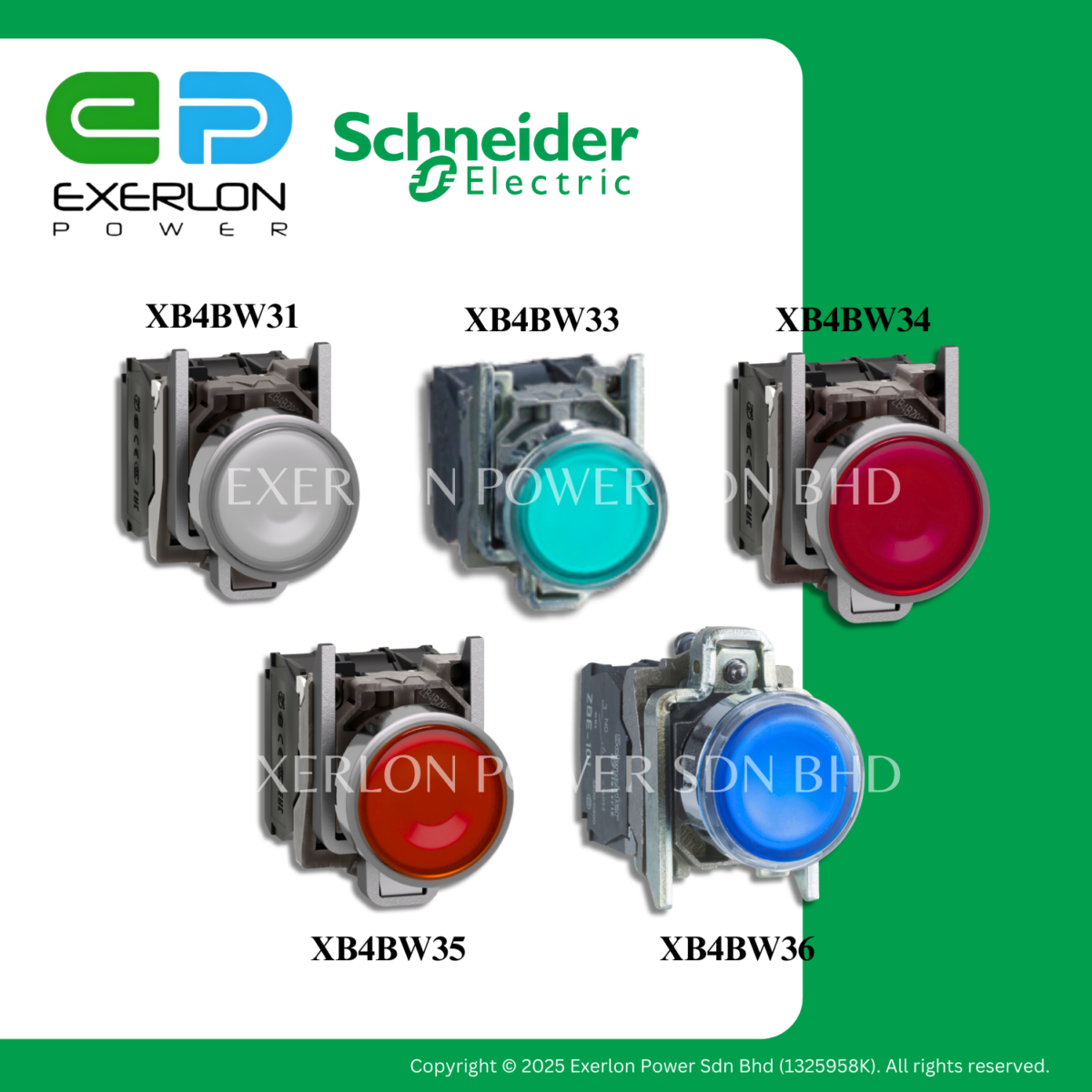

Model Available:
24VAC/DC
– XB4BW31B5 (White)
– XB4BW33B5 (Green)
– XB4BW34B5 (Red)
– XB4BW35B5 (Orange)
– XB4BW36B5 (Blue)
230…240VAC
– XB4BW31M5 (White)
– XB4BW33M5 (Green)
– XB4BW34M5 (Red)
– XB4BW35M5 (Orange)
– XB4BW36M5 (Blue)
You must be logged in to post a review.
📥Product Datasheet (XB4BW31B5) / Product Datasheet (XB4BW31M5)
📥Product Datasheet (XB4BW33B5) / Product Datasheet (XB4BW33M5)
📥Product Datasheet (XB4BW34B5) / Product Datasheet (XB4BW34M5)
📥Product Datasheet (XB4BW35B5) / Product Datasheet (XB4BW35M5)
📥Product Datasheet (XB4BW36B5) / Product Datasheet (XB4BW36M5)
Specification
Overview
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Voltage Rating |
B5 (24VAC/DC) ,M5 (230…240VAC) |

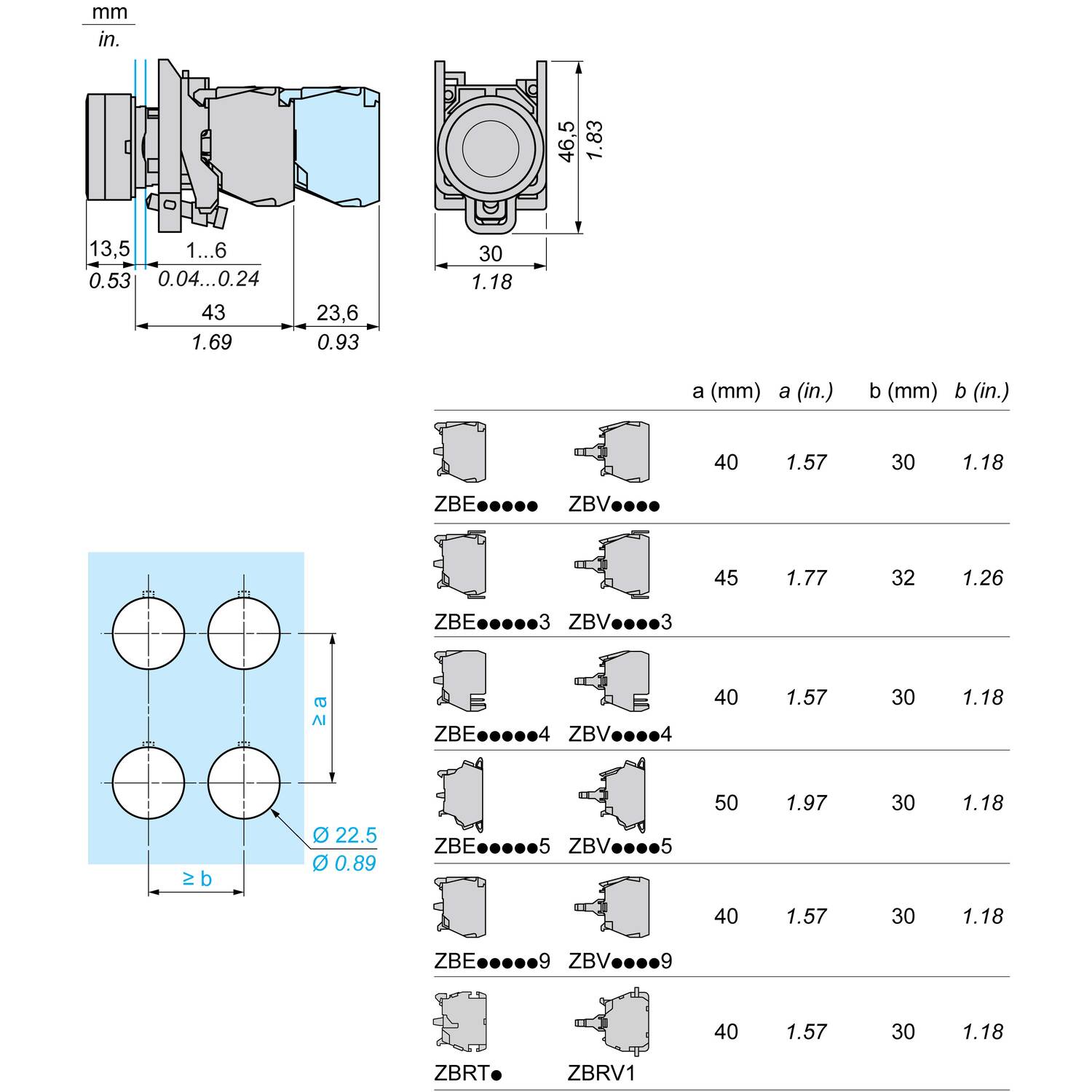

| Mounting Diameter |
22.5 mm |
| Function Available |
Spring Return |
| Aux. Contact Composition |
1 NO + 1 NC |
General
| Brand |
Schneider |
|---|---|
| Range of Product |
Harmony XB4 |
| Product or Component Type |
Illuminated Push-Button |
| Device Short Name |
XB4 |
| Material |
Chromium Plated Metal |
| Model |
Refer on "Product Page" |
